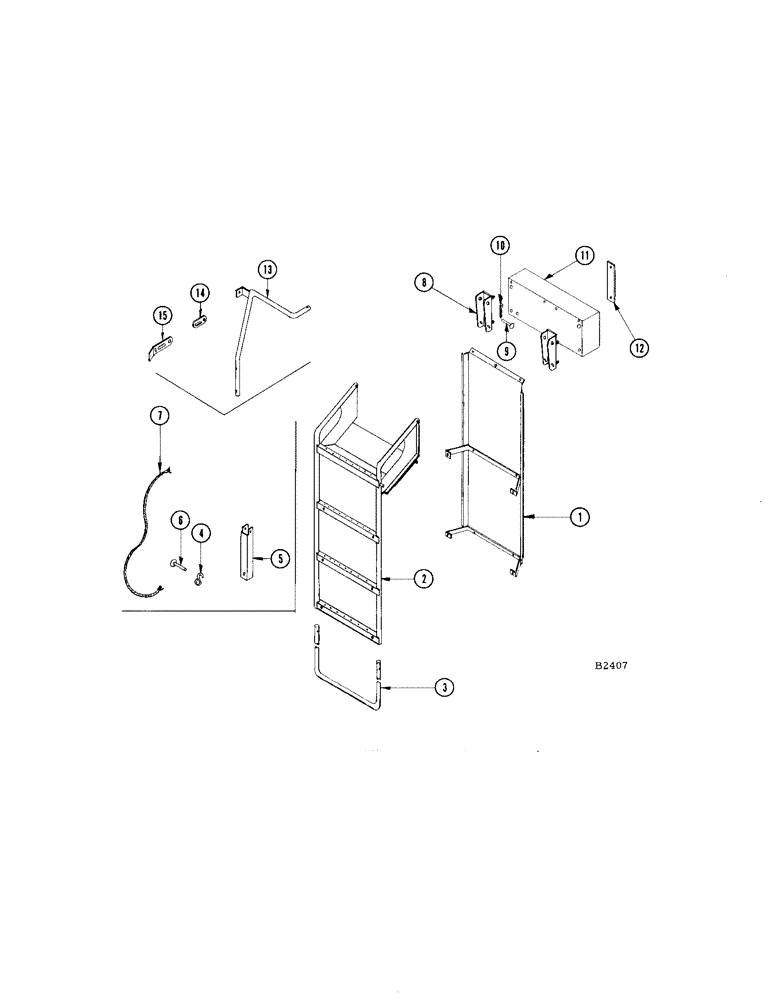

Запчасти Case IH 1660 (172[A]) - FOLDING LADDER (FOR USE WITH CAB) / REAR HANDRAIL (FOR FOLDING LADDER W/O CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F87672

SHIELD - back

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

2

F83170

LADDER - folding, 4-step (Before #8334601)

1шт.

F88117

LADDER - folding, 5-step (#8334601 and after)

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

25-104

NUT,1/4"-20, G5

3шт.

3

F13341

STEP - extension (for 4-step ladder) Before #8334601

1шт.

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

4

F62224

"S" LINK

1шт.

5

F21368

LIFT - channel

1шт.

6

F62238

PIN - 5/16"

1шт.

7

NSS

NOT SOLD SEPARAT

ROPE - 1/4" x 134" cotton sash cord

1шт.

8

F87364

YOKE - pivot w/screw

2шт.

9

F17898

PIN

2шт.

10

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

COTTER - hairpin, 3/8"

2шт.

11

F87259

EXTENSION - ladder

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

12

F13342

STRIP - backing

1шт.

13

F87301

HANDRAIL - rear, folding ladder

1шт.

114-216

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex.

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

F20504

PLATE - spring lock

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

1шт.

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , SAE std. Int Tooth, 1/4"

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

15

F20039

SPRING - lock

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
