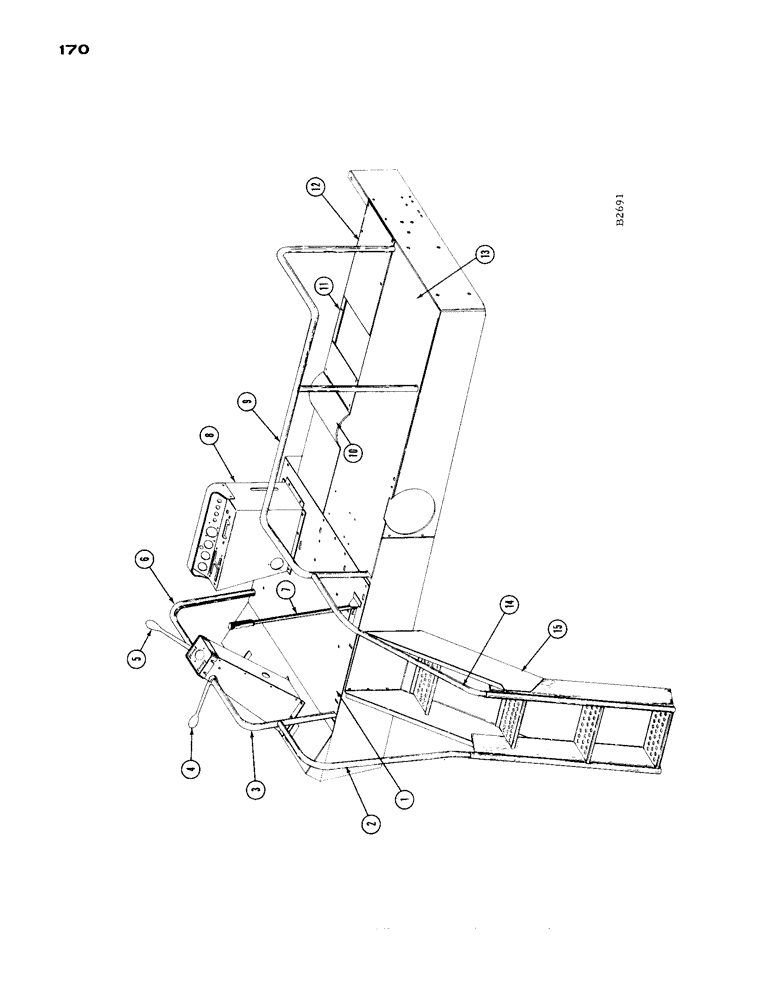

Запчасти Case IH 1660 (170) - OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F87524

PLATFORM - operator's

1шт.

2

F86165

HAND RAIL - L.H.

1шт.

F13220

HAND RAIL - L.H. (for operator's cab)

1шт.

3

F87021

HAND RAIL - L.H. fornt

1шт.

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

4

F1213

LEVER - L.H. control (See header lift and V.S. control)

1шт.

5

F1211

LEVER - R.H. control

1шт.

6

F87022

HAND RAIL - front R.H.

1шт.

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

7

F87019

LEVER - control (See main combine drive idler)

1шт.

8

F87018

CONSOLE - instrument panel

1шт.

9

F87614

HANDRAIL - rear

1шт.

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex.

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

10

F13077

SCREW

COVER - stringer, operator's platform

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

8шт.

195-18

WASHER,1/4"

- SAE std. flat 1/4"

8шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

8шт.

11

F13968

STRINGER - operator's platform

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

6шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

25-104

NUT,1/4"-20, G5

8шт.

12

F13973

FLOOR - removable section

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

4шт.

25-104

NUT,1/4"-20, G5

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

F87611

OPERATOR'S PLATFORM - rear

1шт.

14

F79485

HAND RAIL - R.H.

1шт.

15

F79813

LADDER - side

1шт.

F9629

GROMMET - rubber (Not Shown)

2шт.
