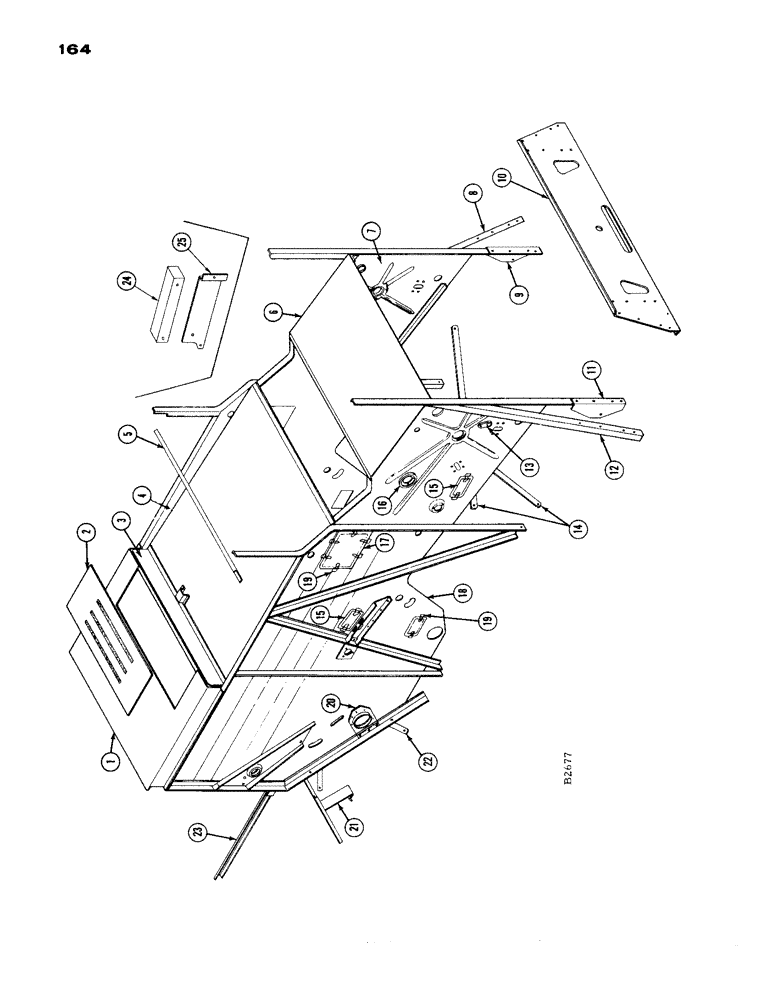

Запчасти Case IH 1660 (164) - SIDES AND DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F87474

REAR DECK

1шт.

2

F87629

DOOR - rear deck

1шт.

F12794

STRIP - anti-skid

3шт.

3

F87473

REINFORCEMENT - front, rear deck

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

4

F87519

DECK - top center (Replaced by F88241 when stock is exh.)

1шт.

F88241

DECK - top center (Replaces F87519)

1шт.

5

F13812

DECK - false top

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

3шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

5шт.

6

F87518

DECK - top, front

1шт.

7

F88871

SIDE SHEET - left hand

1шт.

F86525

CLIP

- access door (See Ref. 19)

14шт.

8

F13203

SCREW

REINFORCEMENT - cylinder post, front L.H.

1шт.

45-516

RIVET,But Hd, 5/16" x 1"

- 5/16" x 1" rhd.

3шт.

9

F13204

REINFORCEMENT - cylinder post, L.H.

1шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

1шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

10

F13735

PLATE - front, main frame

1шт.

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.F. hex.

4шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

8шт.

25-118

NUT,1/2"-20, G5

- 1/2" N. F. hex.

12шт.

11

F13205

SCREW

REINFORCEMENT - cylinder post, R.H. (bottom)

1шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

1шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

F14777

REINFORCEMENT - front cylinder post, R.H. (top)

1шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

1шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

3шт.

92-8

LOCK WASHER,1/2"

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

12

F13769

BRACE - cylinder post, R.H.

1шт.

13

F12598

PLATE

COVER - concave alignment hole

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

92-5

LOCK WASHER,5/16"

4шт.

195-21

WASHER,5/16"

- SAE std. flat 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

14

F13681

SCREW

BRACE - cross

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

15

F8077

DOOR - access, conveyor rake

5шт.

16

F11019

PLATE - mounting, beater bearing

2шт.

17

F9213

DOOR - side

4шт.

18

F88874

SIDE SHEET - right hand

1шт.

19

F86525

CLIP

- access door

14шт.

20

F7832

FLANGE - tailings auger

1шт.

21

F87641

SHIELD - rear wheels

1шт.

114-7

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

2шт.

131-1

LOCK NUT,1/4"-28, GB

NUT - Esna #29-NE-0148

2шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex

1шт.

22

F13804

STRAP - tension, rear body

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

23

F12622

SHIELD - side sheet stiffener

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

10шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

131-104

NUT - 1/4" - 20 Type J Tinnerman speed

10шт.

F14762

PLATE - stiffener, rear body (Chrysler L.P.) Not Shown

2шт.

F14763

SPACER - stiffener plate (Chrysler L.P.) Not Shown

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

24

F4126

BLOCK - chain bumper (for F13732 chain)

1шт.

14-540

BOLT,Hex, 5/16" - 24 x 2-1/2", Gr 5

- 5/16" x 2-1/2" N.F. hex., and FW (195-21)

2шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" N.F. Esna lock

2шт.

25

F30120

SUPPORT - chain bumper block

1шт.
