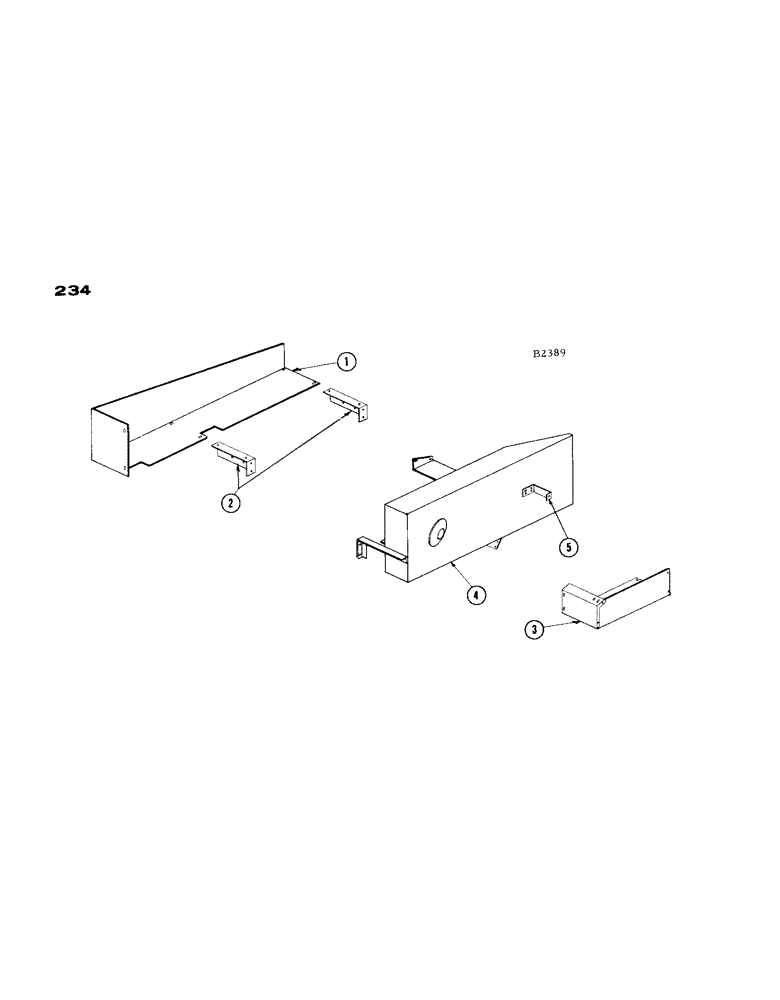

Запчасти Case IH 1660 (234) - FAN TRASH AND MUD SHIELD ATTACHMENT, VARIABLE SPEED TRACTION (88) - ACCESSORIES

1

F13167

SCREW

SHIELD - fan trash, R.H.

1шт.

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

- 3/8" x 1/2" N.F. hex.

4шт.

129-123

NUT,3/8"-24, G5

6шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

2

F9510

ANGLE - support

2шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

4шт.

129-123

NUT,3/8"-24, G5

4шт.

3

F13166

SHIELD - fan trash, L.H.

1шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex.

2шт.

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

- 3/8" x 1/2" N.F. hex.

2шт.

129-123

NUT,3/8"-24, G5

4шт.

4

F87084

SHIELD - mud V.S. traction drive

1шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.f. hex.

2шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

6шт.

129-123

NUT,3/8"-24, G5

8шт.

5

F12849

BRACKET - safety shield

1шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex.

2шт.

129-121

NUT,1/4"-28, G5

2шт.

F19960

LATCH

- for F12849

1шт.

117-EB

SPRING

1шт.

25-104

NUT,1/4"-20, G5

2шт.
