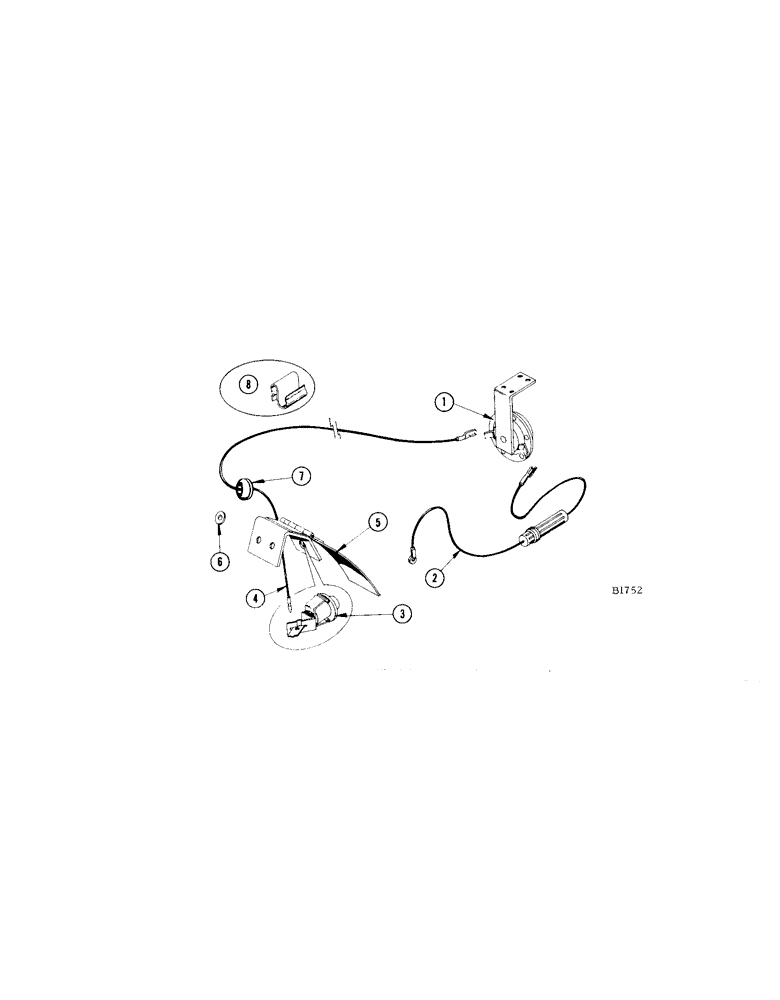

Запчасти Case IH 1660 (158[A]) - WARNING HORN ATTACHMENT (88) - ACCESSORIES

1

F88365

HORN

- (12 Volt) warning device

1шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" rhd. N.C. mach., and Nut (129-17)

4шт.

2

F88356

WIRE - horn to oil temperature gauge

1шт.

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8 - 32 x 1/4" N.C. rhd. mach., and l. w. (192-16)

1шт.

223-9

FUSE,9 Amp, Type SFE

- 9 amp.

1шт.

3

F14830

SWITCH - (12 volt) horn

1шт.

4

F14832

WIRE -, Serial Range: horn-switch

1шт.

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8 - 32 x 1/4" N.C. rhd. mach., and l. w. (192-16)

1шт.

5

F88353

BRACKET - switch, with rip arm

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

and Nut (129-101) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

6

F14831

WASHER - bracket bolt

2шт.

7

A27338

GROMMET

- rubber, for wire hold in rear hood

1шт.

8

F54095

CLIP - frame

8шт.

214-1102

CLIP

- tinnerman (Not Shown)

16шт.
