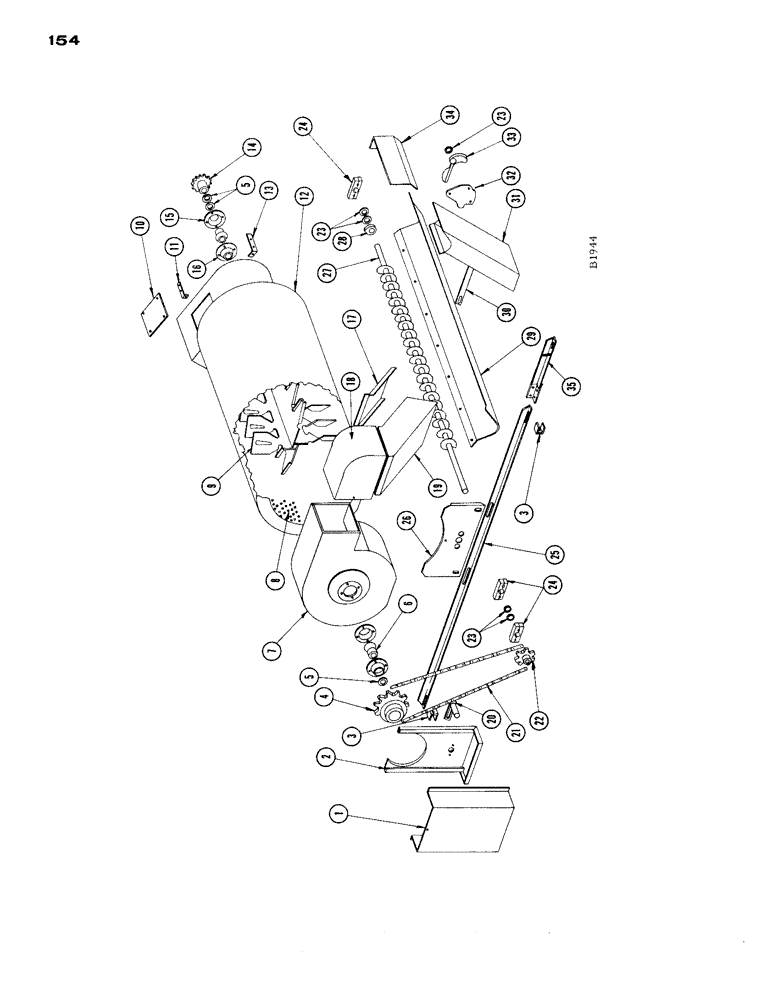

Запчасти Case IH 1660 (154) - SCOURKLEEN ATTACHMENT, GRAIN BIN (80) - CROP STORAGE/UNLOADING

1

F12368

SHEET - front, for dockage chain drive shield

1шт.

2

F86456

SHIELD - weed seed chain drive

1шт.

3

F12375

"U" CLAMP - for discharge end support angle

2шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

4

F1391

SPROCKET - (9T) on discharge end of rotor shaft

1шт.

5

F20286

WASHER

- rotor shaft

3шт.

6

F4347

BEARING

- for rotor shaft

2шт.

7

F86453

DRUM - discharge

1шт.

8

F83260M

SCREEN - (.165" triangular hole) Standard (See ScourKleen Screens)

1шт.

9

F86465

BLADE - rotor

1шт.

10

F12377

SHEET - top door

1шт.

11

F12372

BRACKET - attaching, top for chain drive guard

1шт.

12

F86452

HOUSING - main, for ScourKleen proper

1шт.

13

F12373

BRACKET - attaching, front for chain drive guard

1шт.

14

F1392

SPROCKET - (20T) on intake end of rotor shaft

1шт.

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

15

F20336

RETAINER - outer, for wood bearing

2шт.

16

F20337

RETAINER - inner, for wood bearing

2шт.

17

F12370

SHEET - cover, for grain discharge chute

1шт.

18

F83376

ELBOW - at discharge end of ScourKleen

1шт.

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- 3/16" x 3/8" N.C. mach.

3шт.

129-7

NUT,Hex, #10 - 24

- 3/16" N.C. hex.

3шт.

19

F86450

CHUTE - grain discharge

1шт.

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- 3/16" x 3/8" N.C. mach.

4шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

129-7

NUT,Hex, #10 - 24

- 3/16" N.C. hex.

4шт.

122-9

BURR - 3/16" steel

4шт.

20

F83373

TIGHTENER - chain

1шт.

21

NSS

NOT SOLD SEPARAT

CHAIN - #25 steel (Use B15926 to make 31 link weed seed auger drive chain)

1шт.

22

F1649

SPROCKET - (12T) on dockage auger shaft

1шт.

23

A26411

WASHER

- on dockage auger shaft and Ref. 30

5шт.

24

F4346

BEARING - weed seed auger trough and extension bracket

3шт.

25

F86464

ANGLE - support at discharge end of ScourKleen

1шт.

26

F20343

BRACKET - support, at discharge end of ScourKleen

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

4шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

27

F86460

AUGER - dockage

1шт.

28

F1647

COLLAR - set, on dockage auger shaft

1шт.

29

F86459

TROUGH - dockage

1шт.

30

F12376

BRACE - for weed seed downspout and bag holder

1шт.

31

F86461

DOWNSPOUT - for dockage

1шт.

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- 3/16" x 3/8" N.C. mach.

4шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

129-7

NUT,Hex, #10 - 24

- 3/16" N.C. hex.

4шт.

122-9

BURR - 3/16" steel

4шт.

32

F1651

BRACKET - for dockage bag holder

1шт.

33

F1650

PIVOT - for dockage bag holder

1шт.

34

F12369

SHIELD - dust, L.H., for dockage trough

1шт.

35

F87886

ANGLE - attaching

1шт.
