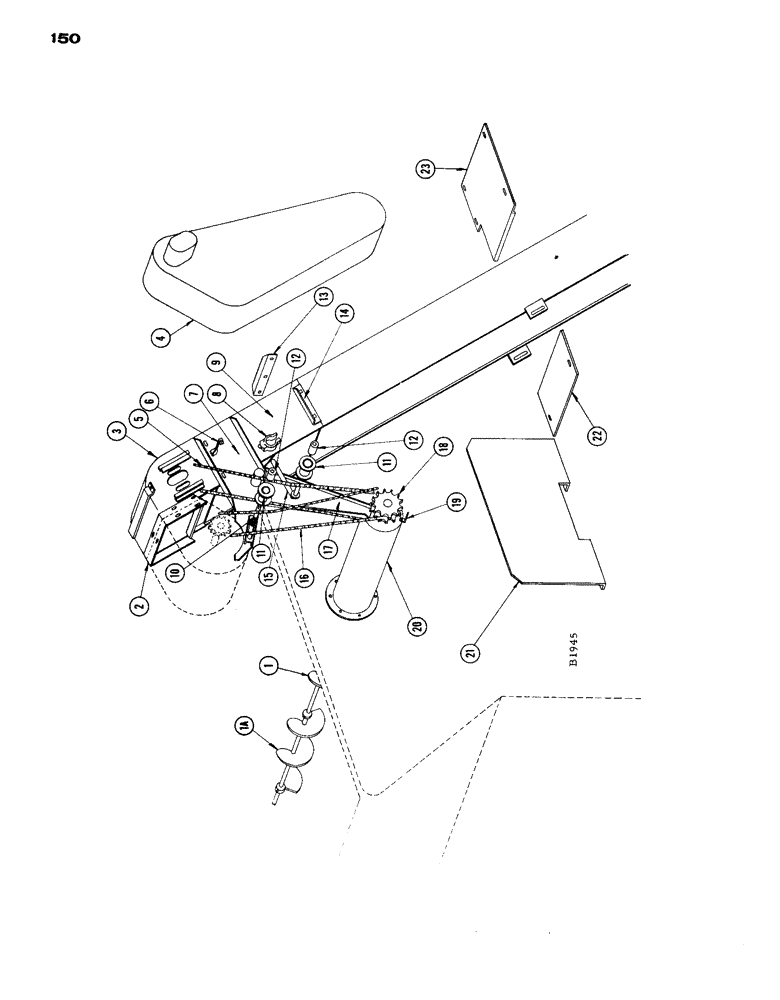

Запчасти Case IH 1660 (150) - SCOURKLEEN ATTACHMENT, ELEVATOR EXTENSION AND DRIVE (80) - CROP STORAGE/UNLOADING

1

F87570

AUGER and SHAFT - distribution

1шт.

1a

F86467

AUGER - grain bin distribution (Extension)

1шт.

2

F86458

SPOUT - elevator discharge

1шт.

122-13

GROMMET

BURR - 1/4" steel

5шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

25-104

NUT,1/4"-20, G5

5шт.

F30517

ADAPTER

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

14шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

14шт.

129-121

NUT,1/4"-28, G5

14шт.

3

F86457

HEAD - grain elevator

1шт.

4

F86462

GUARD - drive

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

7шт.

95-4

WASHER,1/4"

- plain 1/4"

7шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

25-104

NUT,1/4"-20, G5

7шт.

5

F12379

X

CHAIN - grain elevator drive extension (NSS - see chain page)

1шт.

6

F12371

BRACKET - attaching, rear for chain drive guard

1шт.

7

F86454

BRACKET - support, intake end of ScourKleen

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

95-4

WASHER,1/4"

- plain 1/4"

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

8

F1648

CLAMP - collar, on chain tightener arm

1шт.

9

F86463

TUBE - elevator extension

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

5шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

95-4

WASHER,1/4"

- plain 1/4"

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

25-104

NUT,1/4"-20, G5

6шт.

10

F12361

STUD - chain tightener

1шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

- 7/16" N.C. hex. jam

2шт.

95-7

WASHER,7/16"

- N.C. hex. jam 7/16"

2шт.

92-7

LOCK WASHER,7/16"

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

F83368

ROLLER - chain tightener

2шт.

12

F4345

BUSHING

1шт.

13

F12367

ANGLE - rear assembly, elevator extension tube

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

25-104

NUT,1/4"-20, G5

3шт.

14

F12366

ANGLE - side assembly, for elevator extension tube

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25-104

NUT,1/4"-20, G5

4шт.

15

F83371

ARM - chain tightener

1шт.

95-8

WASHER,1/2"

plain 1/2"

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

16

F12378

X

CHAIN - ScourKellen drive (NSS - see chain page)

1шт.

17

F12362

BRACE - stiffener, for distributor auger extension tube

1шт.

18

F86466

SPROCKET - (30T) double drive on distributor auger shaft for ScourKleen and grain elevator drive

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

19

F12374

BRACKET - attaching, bottom for chain drive guard

1шт.

20

F86455

TUBE - extension, for bin distributor

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

25-104

NUT,1/4"-20, G5

6шт.

21

F12365

SHIELD - bag, for operator's platform deck

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

95-4

WASHER,1/4"

- plain 1/4"

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25-104

NUT,1/4"-20, G5

4шт.

22

F12368

PLATE - filler, front operator's platform deck

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

95-4

WASHER,1/4"

- plain 1/4"

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

23

F12364

PLATE - filler, rear operator's platform deck

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

95-4

WASHER,1/4"

- plain 1/4"

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25-104

NUT,1/4"-20, G5

4шт.

F14220

FLOOR - removable section (34-1/2" long) Not Shown)

1шт.

F86451

CHAIN - extension, conveyor (NSS) #55 (See chain page) consists of 1-F86420 and 1-conn. link

1шт.

F88554

EXTENSION CHAIN - conveyor, #CA550-7 inch flight (See chain page) Consists of 5 flights

1шт.

F83260

SCREEN - (.165" triangular hole) Standard - Wheat, Oats, Barley, Rye and Rice

1шт.

F83261

SCREEN - (.140 triangular hole) Wheat, Oats, Barley, Rye and Rice

1шт.

F83262

SCREEN - (1/8" x 3/4" slotted) Corn and Beans

1шт.

F83263

SCREEN - (5/32" x 3/4" slotted) Corn

1шт.

F83264

SCREEN - (5/32" rd.) Beans

1шт.

F83265

SCREEN - (1/20" rd. hole) Clover, Alfalfa and Grass

1шт.

F83266

SCREEN - (1/12" rd. hole) Flax, Grass and Maize

1шт.

F83267

SCREEN - (3/16" rd. hole) Corn and Beans

1шт.

F83268

SCREEN - (7/32" rd. hole) Beans

1шт.
