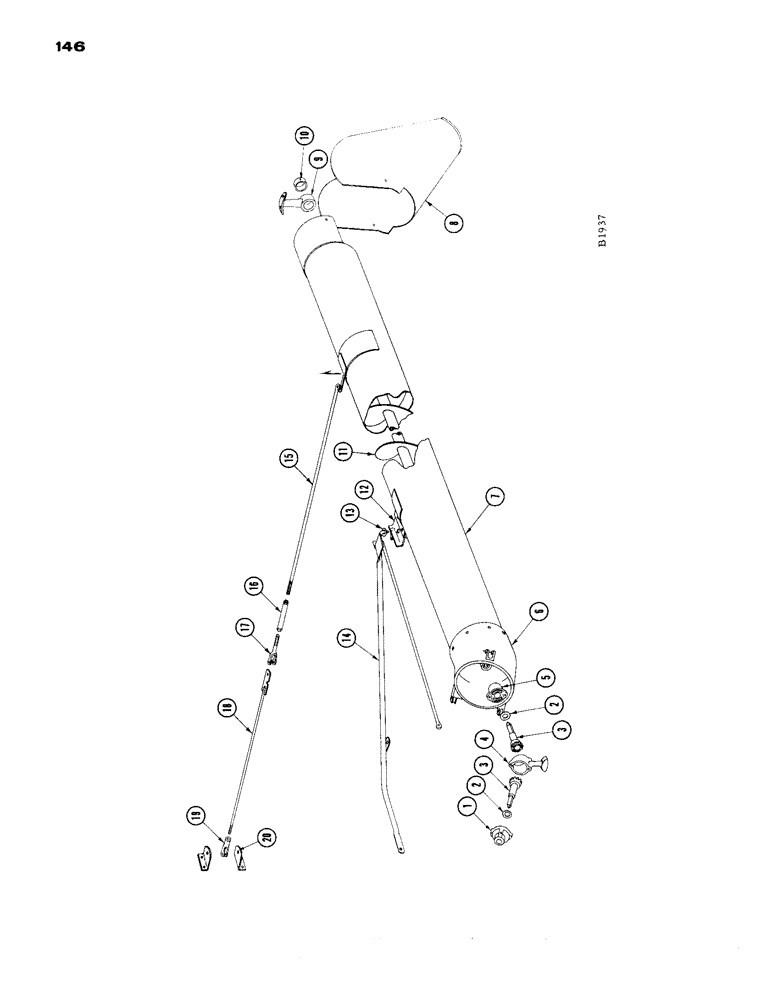

Запчасти Case IH 1660 (146) - GRAIN BIN DISCHARGE AUGER (80) - CROP STORAGE/UNLOADING

1

F82641

CAP

- inner (Before #8334601)

1шт.

F17053

BEARING

BUSHING - discharge auger (Before #8334601)

1шт.

F88209

CAP - inner (#8334601 and after)

1шт.

F14591

BUSHING - (#8334601 and after)

1шт.

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

2

F17801

WASHER

1шт.

3

F12440

GEAR - (13T) auger drive

2шт.

4

F1388

GEAR BOX

1шт.

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

5

F86427

CAP - outer

1шт.

F17054

FLANGED BEARING

BUSHING - (1" I.D. x 1-1/2" long with flange) discharge auger

1шт.

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

6

F1387

ELBOW - grain bin auger

1шт.

7

F79487

TUBE - discharge auger

1шт.

11-614

BOLT

- 3/8" x 7/8" rhd. sq. nk.

10шт.

92-6

LOCK WASHER,3/8"

10шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

10шт.

8

F14024

SPOUT - discharge auger

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

9

F1378

HANGER - discharge auger

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

10

F11361

COLLAR - discharge auger

1шт.

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

11

F79490

AUGER - discharge (Replaced by F88810 when stock is exh.)

1шт.

F88810

AUGER - discharge (Replaces F79490 when stock is exh.)

1шт.

12

F86169

PLATE - locator, grain bin auger tube

1шт.

13

F62051

WASHER

- for Ref. 12

1шт.

14

F86162

FRAME - grain bin auger

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

1шт.

195-33

WASHER,1/2"

- SAE std. flat 1/2"

3шт.

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Elastic stop 1/2"-13, GB

1шт.

15

F12126

ROD - support, grain bin discharge auger tube

1шт.

16

F86175

TURNBUCKLE - grain bin auger rod

1шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

129-376

NUT,Jam, 1/2"-20, G5, LH

- 1/2" N.F. hex., L.H. thd.

1шт.

17

F12144

CLEVIS - grain bin auger rod

1шт.

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

129-125

NUT,1/2"-20, G5

1шт.

18

F86170

PLATE - pivot, auger support rod

1шт.

19

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - grain bin

1шт.

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20

F13837

ANCHOR - auger support rod

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

195-21

WASHER,5/16"

- SAE std. flat 5/16"

4шт.

92-5

LOCK WASHER,5/16"

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.
