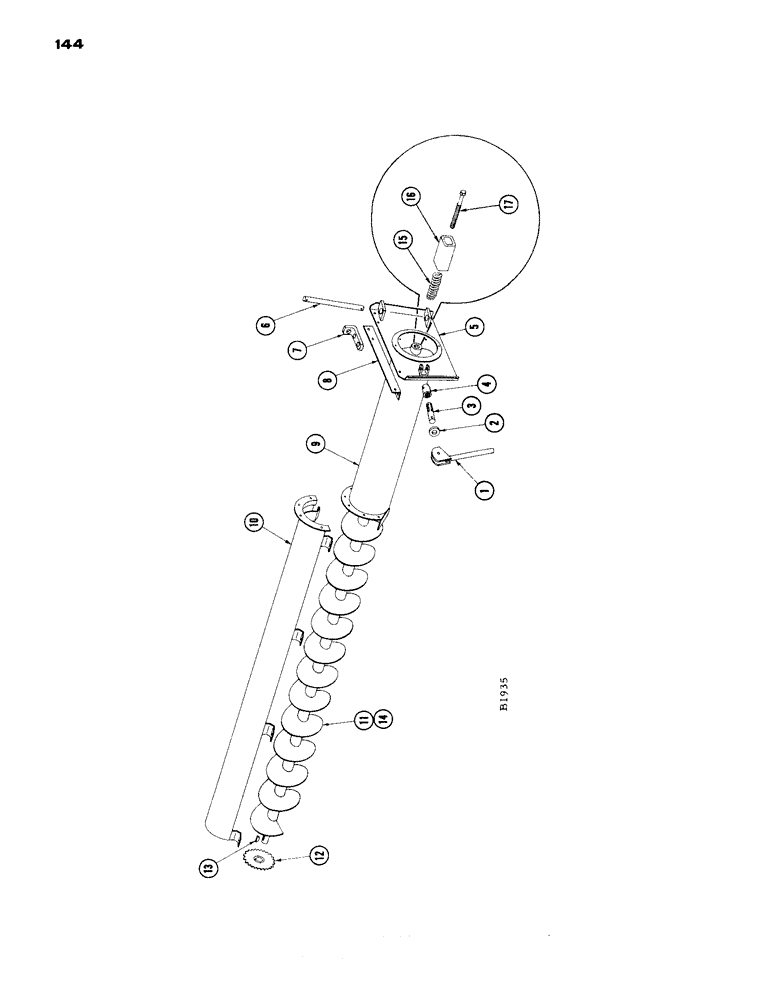

Запчасти Case IH 1660 (144) - GRAIN BIN AUGER (80) - CROP STORAGE/UNLOADING

1

F86174

HANDLE - latch, auger tube

1шт.

135-770

PIN - drive loc Type 5, 5/16" x 1"

1шт.

2

F12141

PLATE - cam

1шт.

3

F12140

ROD - latch handle

1шт.

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" N.F. hex. jam

1шт.

4

F12142

NUT - adjusting

1шт.

5

F87043

HINGE - auger elbow

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

8шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

8шт.

6

F12143

HINGE PIN - grain bin auger rod

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

F12074

ANCHOR - front, auger frame

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

8

F12073

ANCHOR - hinge plate, auger elbow

1шт.

9

F79402

TUBE - grain bin auger

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N.F. hex.

6шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

6шт.

O418L

WASHER - for 11-612 bolts of F79402 tube (Not Shown)

3шт.

10

F87551

COVER - auger

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

11

F87550

AUGER - grain bin (Before #8359001) Replaced by F88784 when stocks are exhausted.

1шт.

12

F79411

SPROCKET - (34T) grain bin auger, driven

1шт.

13

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

14

F88684

AUGER

- grain bin (Replaces F87550)

1шт.

15

O2767CS

SPRING - compression

1шт.

16

F88516

SLIDER

1шт.

17

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8" x 3-3/4" N.C. hex.

1шт.
