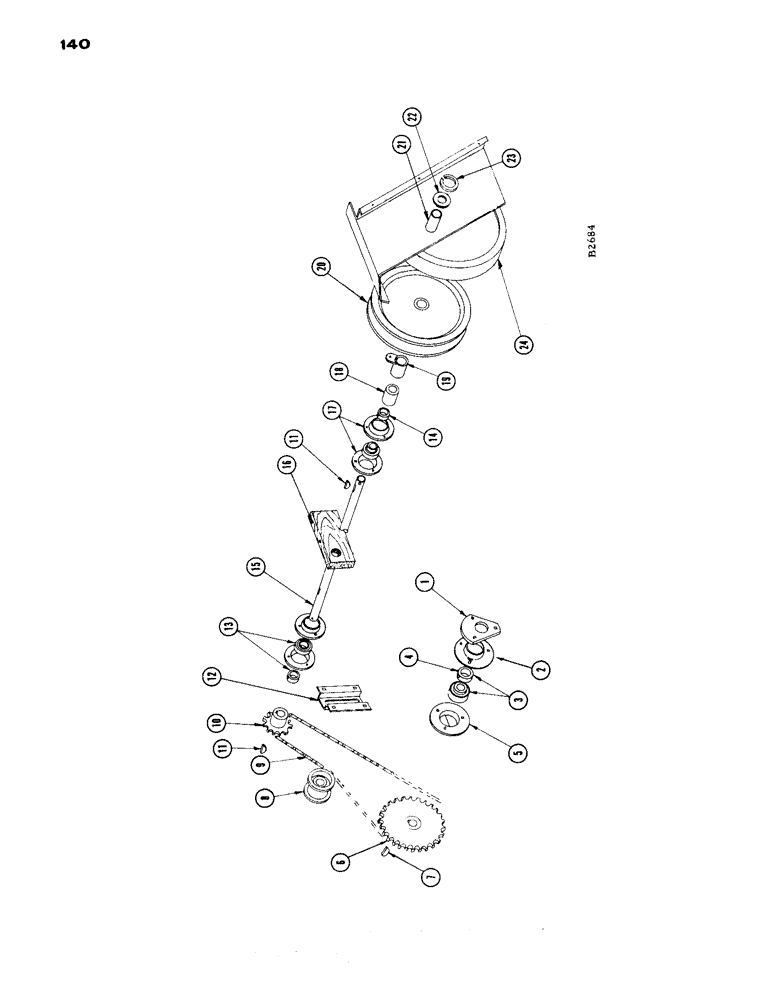

Запчасти Case IH 1660 (140) - GRAIN BIN AUGER DRIVE JACKSHAFT (80) - CROP STORAGE/UNLOADING

1

F10239

SHIELD - bearing

1шт.

2

F19270

FLANGE

- for 1443CKA bearing

1шт.

11-614

BOLT

- 3/8" x 7/8" rhd. sq. nk.

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

92-6

LOCK WASHER,3/8"

3шт.

3

1443CKA

BALL BEARING

BEARING - R.H. end of auger

1шт.

4

F62234

COLLAR

1шт.

5

F62225

FLANGE

- for 1443CKA bearing

1шт.

6

F79411

SPROCKET - (34T) grain bin auger, driven

1шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

7

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

8

O3511CS

PULLEY

- auger drive tightener

1шт.

11-836

BOLT

- 1/2" x 2-1/4" rhd. sq. nk.

1шт.

95-8

WASHER,1/2"

U.S. std. flat 1/2"

3шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

9

F13872

CHAIN - grain bin auger drive (NSS - see chain page)

1шт.

19

F79843

SPROCKET - (16T) drives grain bin auger

1шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

11

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

12

F11994

BRACKET - tightener, auger over grain bin chain

1шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk.

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

92-5

LOCK WASHER,5/16"

4шт.

13

3074CSA

BALL BEARING

- jackshaft (Both ends)

2шт.

14

F62108

COLLAR

1шт.

15

F13836

JACKSHAFT - grain bin auger drive

1шт.

16

F4104

BEARING - jackshaft (wood)

1шт.

17

B18262

FLANGE - for 3074CSA bearing

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

92-5

LOCK WASHER,5/16"

6шт.

18

G3688S

SPACER

1шт.

19

F79811

ARM - shear pin, driven sprocket

1шт.

17-416

BOLT - 1/4" x 1" req. sq. hd. N.C.

1шт.

131-506

NUT,1/4-20

NUT - 1/4" N.C. flex loc.

1шт.

20

F87567

SHEAVE

1шт.

21

O9048HT

BEARING

1шт.

22

NLS

NO LONGER SERVICED

- (1-3/4" O.D. x 1-1/32" I.D. #18 ga.) for jackshaft.

1шт.

23

F62095

RING, SNAP

SNAP RING

1шт.

24

F87931

BELT GUIDE - (replaces F87569)

1шт.

F14126

WASHER - for F87931

1шт.

F11139

BELT

Drives Grain Bin Auger Drive Jackshaft, Not Shown

1шт.
