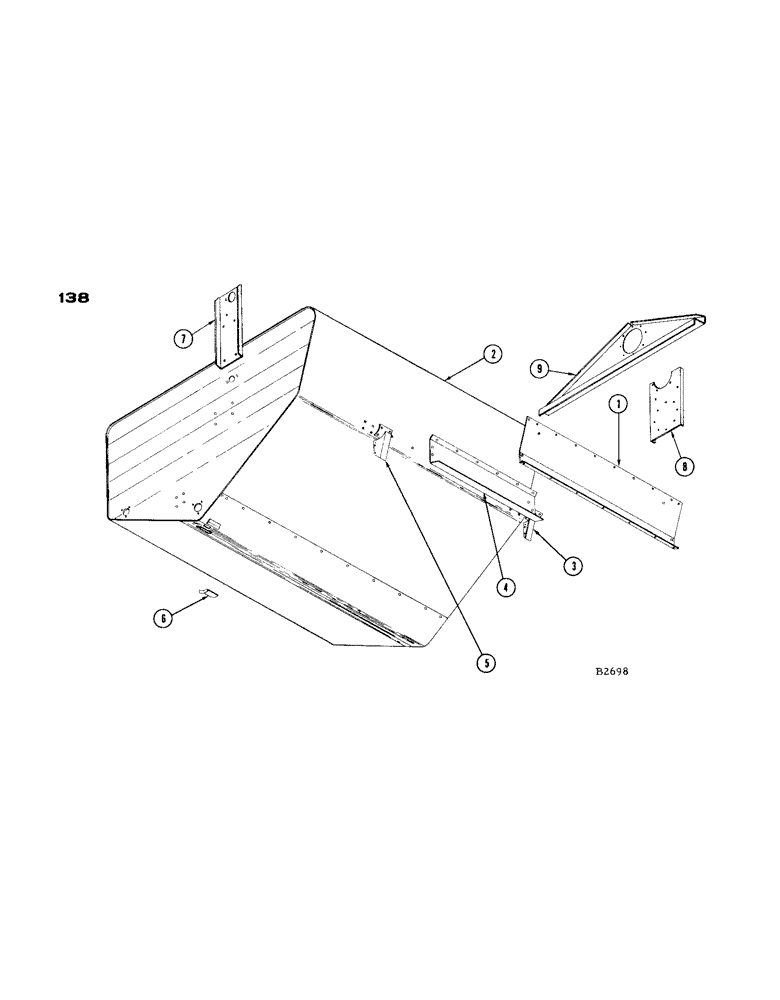

Запчасти Case IH 1660 (138) - GRAIN BIN AND SUPPORTS (80) - CROP STORAGE/UNLOADING

1

F13883

SHEET - grain bin body, front

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

7шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

11шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

6шт.

25-104

NUT,1/4"-20, G5

6шт.

2

F87543

GRAIN BIN ASSEMBLY - (Before #8359001)

1шт.

F88683

GRAIN BIN ASSEMBLY - (#8359001 thru #8368000)

1шт.

F98041

GRAIN BIN ASSEMBLY (#8358001 and after)

1шт.

3

F79413

SUPPORT - grain bin, front, L.H.

1шт.

4

F12644

SUPPORT - center grain bin

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

5

F79412

SUPPORT - grain bin, front, R.H.

1шт.

6

F9188

DOOR

- clean-out

1шт.

7

F14966

STIFFENER - R.H. (#8368001 and after)

1шт.

8

F14967

STIFFENER - L.H. (#8368001 and after)

1шт.

9

F14968

GRAIN SHIELD - R.H. (#8268001 and after)

1шт.
