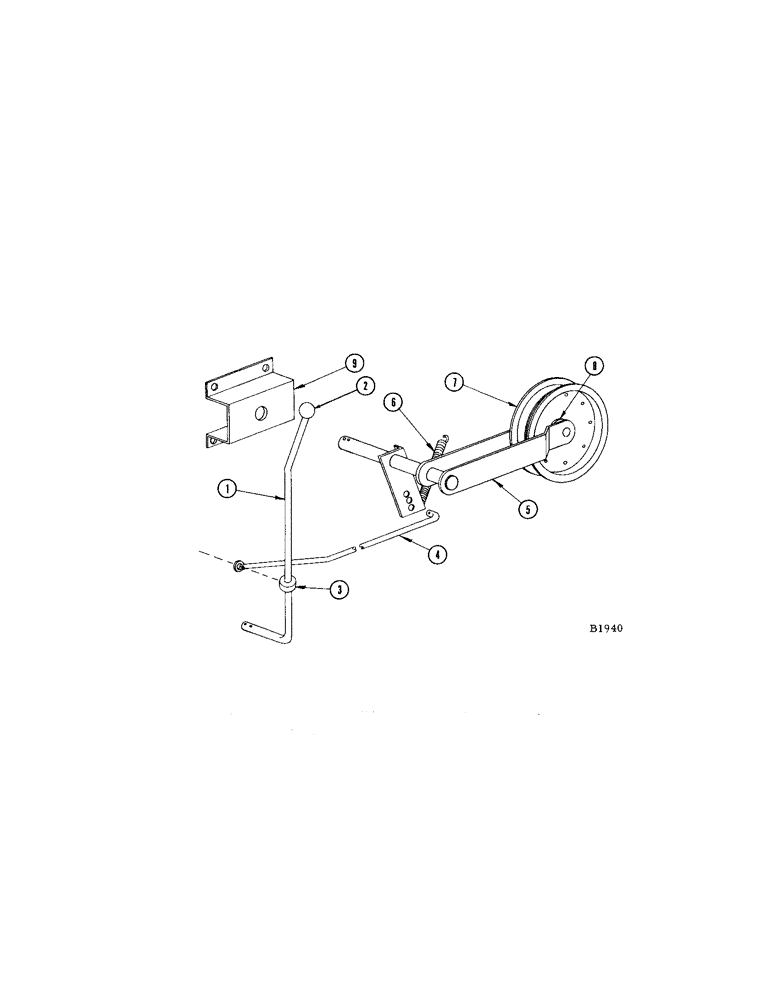

Запчасти Case IH 1660 (138[A]) - GRAIN BIN JACKSHAFT DRIVE TIGHTENER (80) - CROP STORAGE/UNLOADING

1

F13058

LEVER - unloading

1шт.

195-33

WASHER,1/2"

- SAE std. flat 1/2"

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

F21683

KNOB

- lever control

1шт.

3

F10117

COLLAR - adjusting

1шт.

4

F13871

ROD - belt tightener

1шт.

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex jam

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

5

F87032

PIVOT - idler

1шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

6

O183N

SPRING - tension

1шт.

7

F13064

SCREW

SHEAVE - (7" O.D.) tightener

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

1шт.

8

O2682B

WASHER - (1-3/8" O.D. x 21/32" I.D. #14 ga.) spacer

2шт.

9

F11129

PLATE - support, idler pivot

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.
