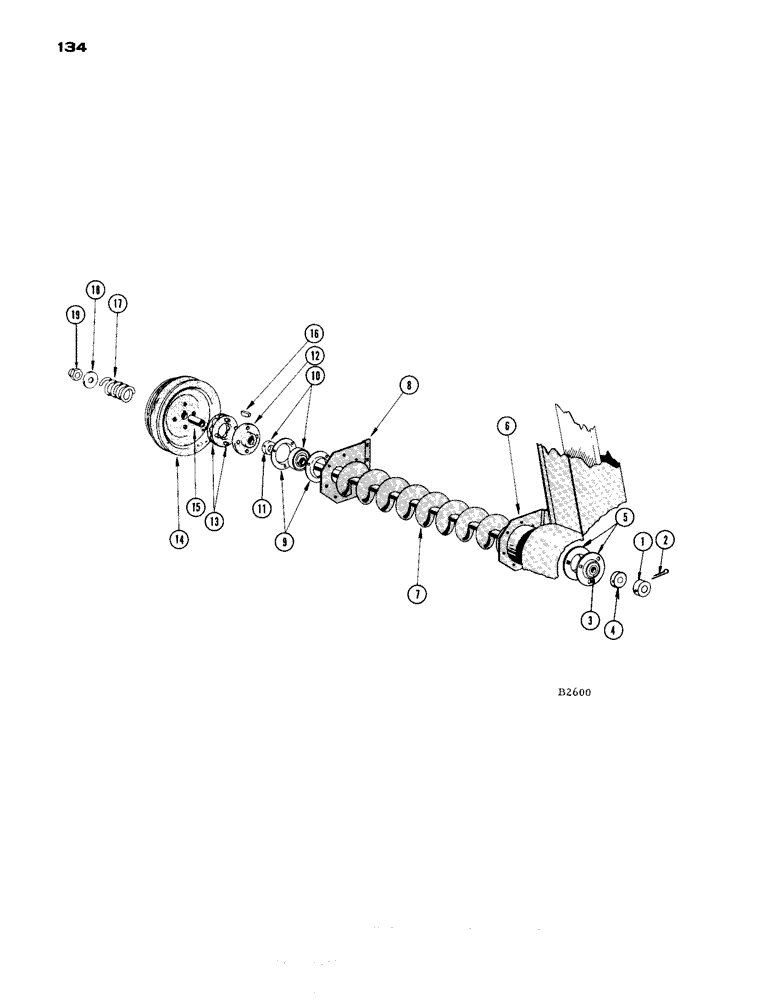

Запчасти Case IH 1660 (134) - GRAIN AUGER (80) - CROP STORAGE/UNLOADING

1

73B

COLLAR - safety (Before #8368001)

1шт.

2

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), (Before #8368001) 3/16" x 1 1/2"

1шт.

3

F90306

BEARING ASSY

BEARING - L.H. end of grain auger shaft

1шт.

4

O4233CS

COLLAR

1шт.

5

B18282

FLANGE

- bearing

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

3шт.

6

F7823

FLANGE - grain auger trough

1шт.

7

F88902

AUGER - grain (#8368001 and after)

1шт.

F87617

AUGER - grain (Before #8368001)

1шт.

8

F76945

PLATE - for 3074CSA bearing

1шт.

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" rhd. N.C. mach.

8шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" rhd. N.C. mach.

1шт.

25-104

NUT,1/4"-20, G5

9шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

9

B18282

FLANGE

- for 3074CSA bearing Ref. 10

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

3шт.

10

3074CSA

BALL BEARING

- R.H. end of grain auger shaft

1шт.

11

F62108

COLLAR

1шт.

12

143CS

PLATE

- hub, jump clutch (Before #8368001) (Exh. then use F89322)

1шт.

F89322

SCRAPER

PLATE - hub, jump clutch (Before #8368001) (Replaces 143CS when exhausted)

1шт.

13

T16665

RING - clutch (Before #8368001)

2шт.

14

F86142

SHEAVE - drive auger and fan (Medium fan speed)

1шт.

F12054

BUSHING

1шт.

F88248

SHEAVE - drives auger and fan (High fan speed - corn)

1шт.

15

F12054

BUSHING

1шт.

F1262

SHEAVE - drives auger and fan (Slow fan speed attachment) See F86142 and F88248

1шт.

16

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Before #8368001) #A, 1/4" x 7/8"

1шт.

17

O1090CH

SPRING

- jump clutch (Before #8368001)

1шт.

18

F30366

WASHER - (#8368001 and after)

1шт.

A26376

WASHER

- (1-9/16" O.D. x 25/32" I.D. #12 ga.) Before #8368001)

1шт.

19

131-37

LOCK NUT,3/4"-16

NUT - NF Esna #29 NTE 126 3/4"-16

1шт.

F13709

TROUGH - grain auger (Not Shown)

1шт.

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, (#8368001 and after) #87, .668" Dia, E-Type

1шт.
