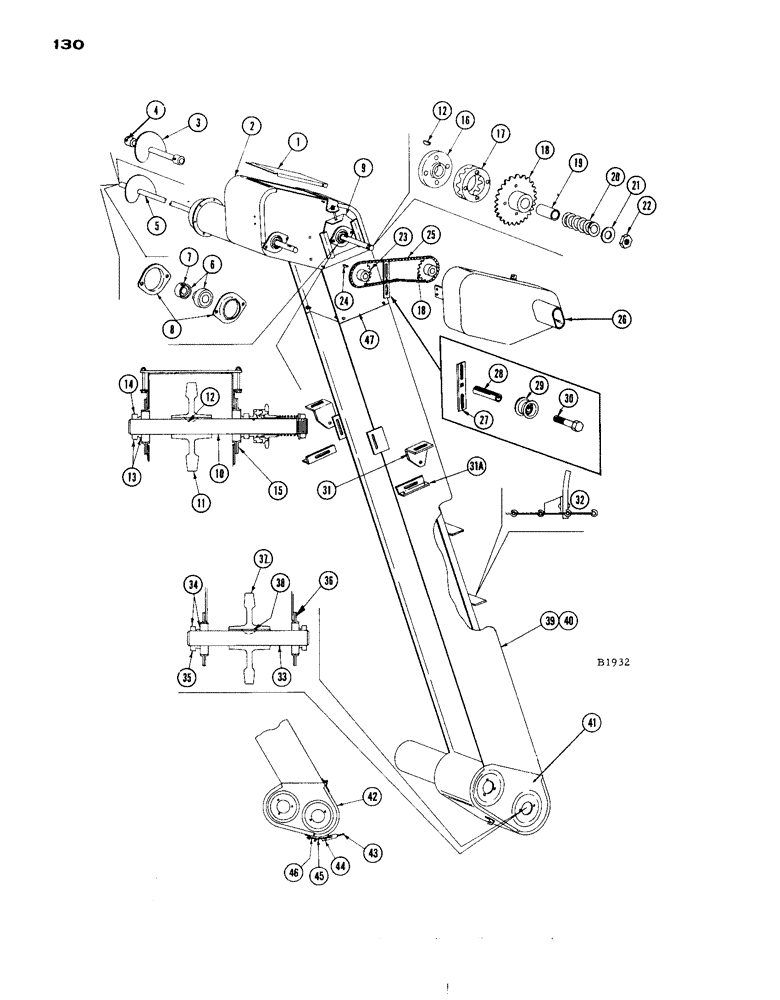

Запчасти Case IH 1660 (130) - GRAIN ELEVATOR (80) - CROP STORAGE/UNLOADING

1

F11245

COVER - hand hole, upper head

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

2

F79458

HEAD - upper, elevator body (Before #8359001)

1шт.

F88522

HEAD - upper, elevator body (#8359001 and after)

1шт.

173-20

SCREW - 1/4" x 1/2" N.C. mach.

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

6шт.

129-121

NUT,1/4"-28, G5

6шт.

3

F87571

AUGER - sliding distribution

2шт.

4

85-512

SET SCREW

SCREW - 5/16" x 3/4" sq. hd. N.C. cup pt. set

4шт.

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex. jam

4шт.

5

F57470

AUGER - distribution (Before #8359001)

1шт.

F88685

AUGER - distribution (#8359001 and after)

1шт.

6

F90306

BEARING ASSY

BEARING - for Ref. 5

2шт.

7

O4233CS

COLLAR

1шт.

8

F9417

FLANGE

- for F90306 bearing

4шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

9

F16438

HOLDER - elevator bearing

2шт.

113-117

BOLT - 5/16" x 2-1/2" N.C. hex.

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

10

F11232

SHAFT

- upper head

1шт.

11

51B

SPROCKET ASSY.

SPROCKET - (7T) elevator chain, upper shaft

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

12

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

For ref. 11 and 16 #A, 1/4" x 7/8"

2шт.

13

F90306

BEARING ASSY

BEARING - for Ref. 10

2шт.

14

O4233CS

COLLAR

1шт.

15

F9417

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

16

143CS

PLATE

- hub, jump clutch (Exh. then use F89322)

1шт.

F89322

SCRAPER

PLATE - hub, jump clutch (Replaces 143CS when exh.)

1шт.

17

T16665

RING - clutch

2шт.

18

F79464

SPROCKET ASSY.

SPROCKET - (30T) grain elevator drive

1шт.

19

F11042

BEARING

BUSHING - (27/32" O.D. x 1-3/8" long)

1шт.

20

F14545

SPRING - (Replaces O 1090CH)

1шт.

21

A26376

WASHER

1шт.

22

131-37

LOCK NUT,3/4"-16

NUT - NF Esna #29 NTE 126 3/4"-16

1шт.

23

F88130

SPROCKET - (35T) distribution auger drive, driven (#8368001 and after)

1шт.

F79467

SPROCKET ASSY.

SPROCKET - (30T) distribution auger drive, driven (See F88131) Before #8368001

1шт.

F88131

SPROCKET - (18T) driven (High Speed) see F79467

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

24

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

25

F12469

CHAIN - grain elevator drive (NSS - See Chain Page) Medium (#8368001 and after)

1шт.

F11247

CHAIN - grain elevator drive (NSS - See Chain Page) Medium (Before #8368001)

1шт.

F14525

CHAIN - grain elevator drive (NSS - See chain page) Hi-Speed

1шт.

26

F79474

SHIELD - chain (Before #8359001)

1шт.

F88533

SHIELD - chain (#8359001 and after)

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex.

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

129-121

NUT,1/4"-28, G5

2шт.

27

F12712

BRACKET - chain tightener

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

28

O201HT

SPACER - chain tightener

1шт.

29

O3511CS

PULLEY

IDLER - chain tightener

1шт.

30

18-660

BOLT - 3/8" x 3-3/4" N.C. #3 hd. plow

1шт.

195-25

WASHER,3/8"

- SAE std. flat 3/8"

4шт.

92-6

LOCK WASHER,3/8"

1шт.

31

F13150

BRACKET - elevator support (#8368001 and after)

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

F12075

BRACKET - elevator support (Before #8368001)

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

195-21

WASHER,5/16"

- SAE std. flat 5/16"

2шт.

32

F79469

CHAIN - conveyor (NSS) #55 (See chain page) consists of 1-F86424, F86422, 2-F78446 and 2-F79706

1шт.

32

F88526

CHAIN - conveyor, elevator (#CA550-7 inch flight) See Chain Page; consists of 36 flights (Before #8368001)

1шт.

F88530

CHAIN - conveyor, elevator

1шт.

33

F6612

SHAFT - lower head (#8368001 and after)

1шт.

33

F6612

SHAFT - lower head (#8368001 and after)

1шт.

F11240

SHAFT - lower head (Before #8368001)

1шт.

34

F90306

BEARING ASSY

BEARING - for Ref. 39

2шт.

35

O4233CS

COLLAR

1шт.

36

F9417

FLANGE

4шт.

11-58

BOLT - 5/16" x 1/2" rhd. sq. nk.

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

37

F76981

SPROCKET - elevator chain, lower shaft (#8368001 and after)

1шт.

51B

SPROCKET ASSY.

SPROCKET - (7T) elevator chain, lower shaft (Before #8368001)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

38

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

For ref. 33 and 37 #A, 1/4" x 7/8"

1шт.

39

F79461

BODY and LOWER HEAD - (Replaced by F88407 and F88408 when stock is exhausted)

1шт.

40

F88407

BODY - elevator (See F88408) Replaces F79461

1шт.

41

F88408

HEAD - lower (See F88407) Replaces F79461

1шт.

42

F79470

DOOR - lower head (Replaced by F88410 when stock is exh.)

1шт.

F88410

DOOR - lower head (Replaces F79470)

1шт.

43

O313CS

HANDLE - latch, lower head cover

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

44

F11512

BRACKET - for latch handle O313CS

2шт.

45

O316CS

SPRING - linkage

1шт.

46

O315CS

HOOK - latch, lower head cover

1шт.

47

F87066

TUBE - ext. grain elevator (#8368001 and after)

1шт.
