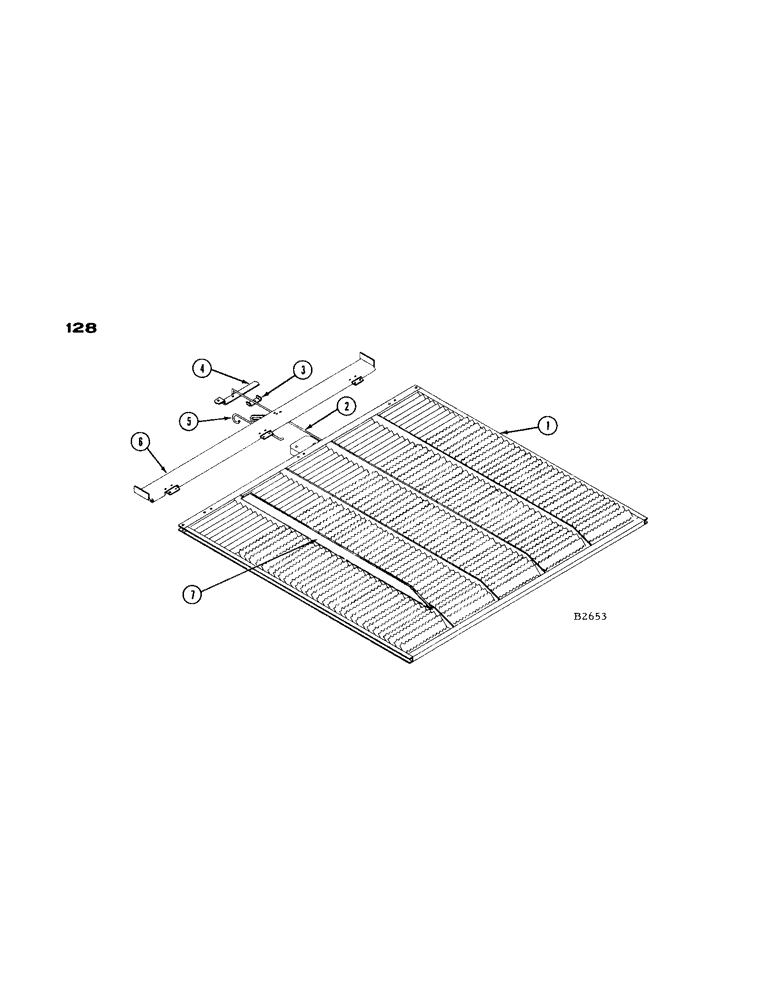

Запчасти Case IH 1660 (128) - CONVEYOR SIEVE, MEDIUM SLOPE ATTACHMENT (74) - CLEANING

1

F87632

SIEVE

- conveyor, complete less tailgate assembly

1шт.

2

F8106

ROD

- adjusting, shoe sieve

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

3

F13997

CLAMP - rod

1шт.

11-520

X

BOLT - 5/16" x 1-1/4" rhd. sq. nk.

1шт.

92-5

LOCK WASHER,5/16"

1шт.

129-419

WING NUT,5/16"-18

- 5/16" N.C.

1шт.

4

F8096

LEVER - adjusting, conveyor sieve

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" N.F. Esna lock

1шт.

5

O464CS

ROD - adjusting, conveyor sieve

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

6

F87635

TAILGATE - conveyor sieve

1шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex.

6шт.

195-518

WASHER,1/4", SAE

6шт.

129-121

NUT,1/4"-28, G5

6шт.

7

F14612

RISER - conveyor sieve

4шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" rhd. N.C. mach. and l.w. (192-19)

24шт.

195-106

WASHER,1/2"

- 1/4" flat and nut (129-101)

24шт.
