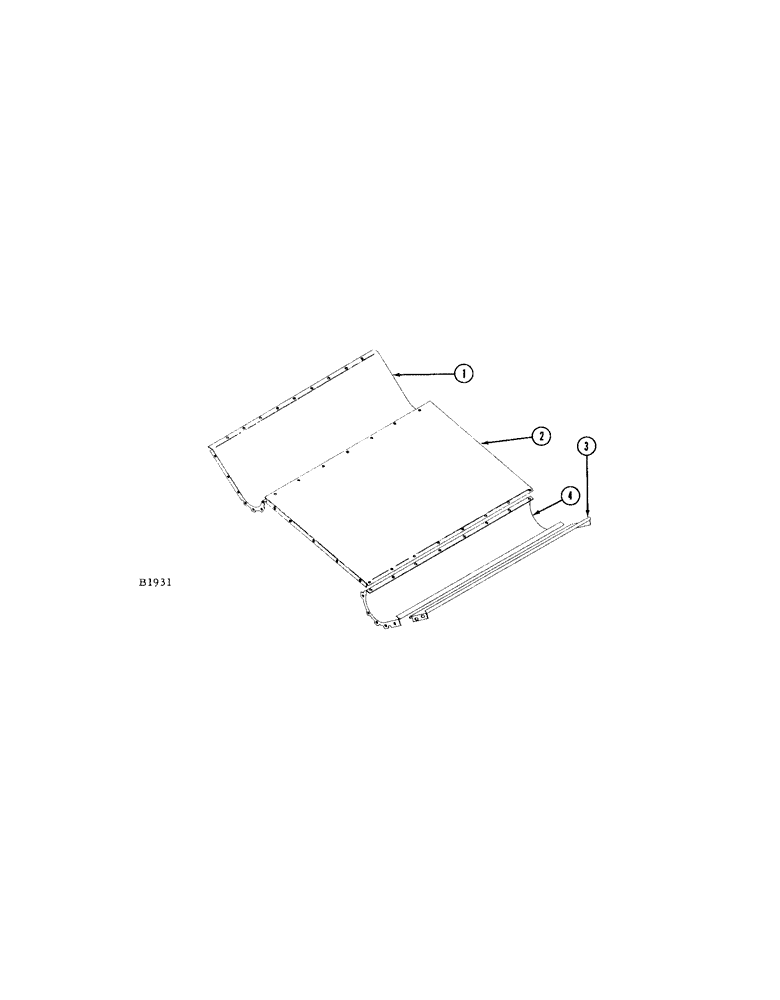

Запчасти Case IH 1660 (128[A]) - GRAIN FLOOR, PERFORATED TROUGH AND FLOOR ATTACHMENT (74) - CLEANING

1

F13709

TROUGH - grain auger, grain floor

1шт.

2

F13708

FLOOR - grain, grain floor

1шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" rhd. N.C. mach., grain floor

11шт.

25-104

NUT,1/4"-20, G5

Grain floor 1/4"-20, G5

11шт.

3

F14009

PANEL - hinge, grain floor

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., grain floor

4шт.

195-518

WASHER,1/4", SAE

grain floor 1/4", SAE

4шт.

129-121

NUT,1/4"-28, G5

Grain floor 1/4"-28, G5

4шт.

4

F13728

TROUGH - tailings, grain floor

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Grain floor Hex, 1/4"-28 x 1/2", G5, Full Thd

11шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex., grain floor

11шт.

F144595

TROUGH - grain auger (perforated ) see F13709, perforated trough and floor attachment

1шт.

F14596

TROUGH - tailings auger (perforated) See F13728, perforated trough and floor attachment

1шт.

F88220

FLOOR - conveyor rake access (perforated) See F87487, perforated trough and floor attachment

1шт.
