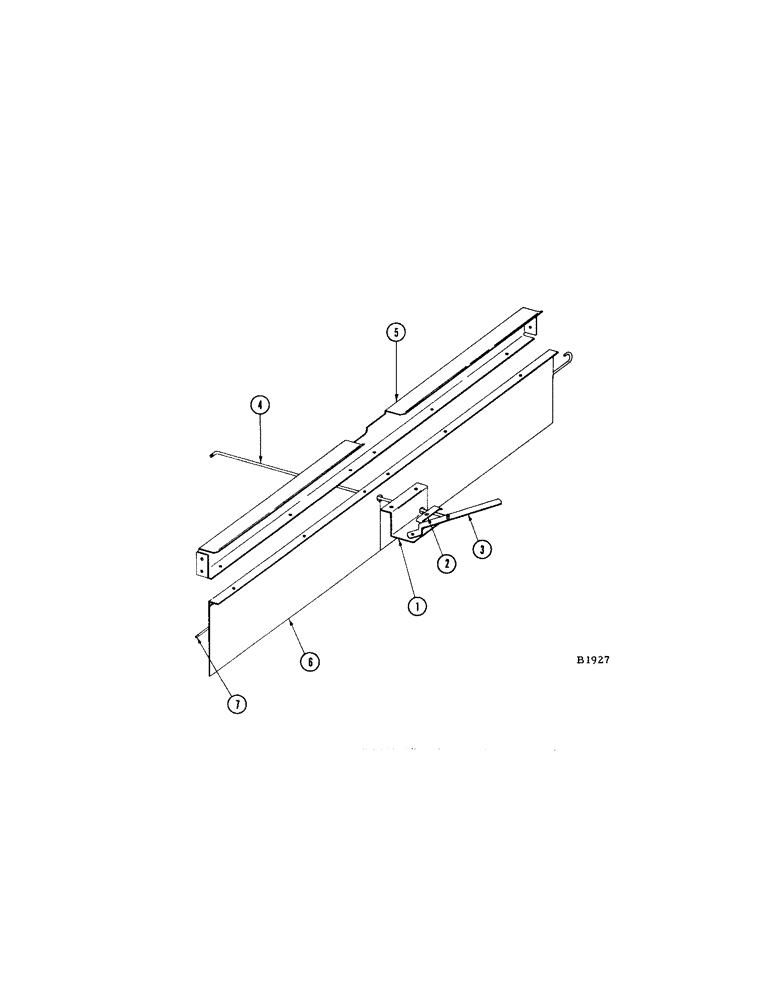

Запчасти Case IH 1660 (126[A]) - SHOE SIEVE ADJUSTMENT (74) - CLEANING

1

F8094

BRACKET - adjustment

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

2

F13997

CLAMP - rod

1шт.

11-520

X

BOLT - 5/16" x 1-1/4" rhd. sq. nk.

1шт.

92-5

LOCK WASHER,5/16"

1шт.

129-419

WING NUT,5/16"-18

- 5/16" N.C.

1шт.

3

F8096

LEVER - adjusting, shoe sieve

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" N.F. Esna lock

1шт.

4

F8106

ROD

- adjusting, shoe sieve

1шт.

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.

5

F13713

CROSS MEMBER - rear

1шт.

6

F87631

STIFFENER and SEAL - rear shoe

1шт.

7

F13998

ROD - rear shoe seal

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
