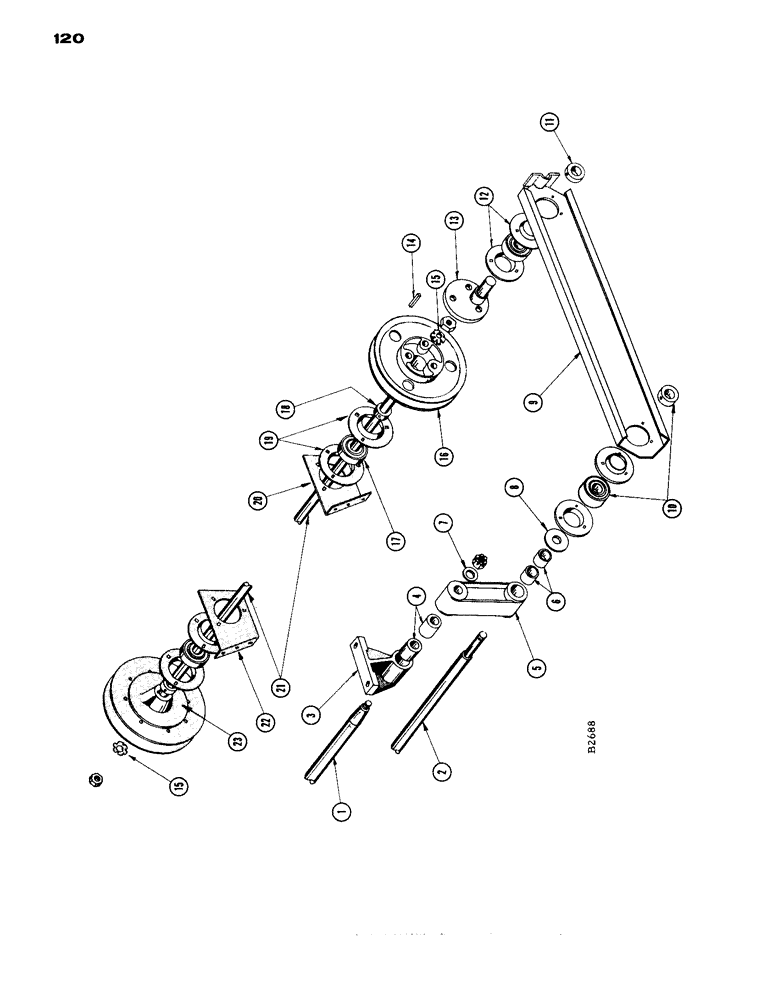

Запчасти Case IH 1660 (120) - ROCKER ARM DRIVE FOR SHOE, RETURN PAN AND STRAWWALKER (74) - CLEANING

1

F13688

SHAFT - rocker arm

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

2шт.

195-21

WASHER,5/16"

- SAE std. flat 5/16"

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

2

F13720

SHAFT - front shoe (Before #8359001) Replaced by F30121 when stocks are exhausted

1шт.

F30121

SHAFT - front shoe (Replaces F13720)

1шт.

A26949

RING, SNAP

SNAP RING - for F30121 shaft

2шт.

3

F77274

HOUSING and BEARING - rocker arm

2шт.

4

F10555

BUSHING

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

5

F86054

ARM - front rocker

2шт.

6

F10555

BUSHING

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

7

O236CH

WASHER - for F13688

1шт.

8

O15761S

SPACER

2шт.

9

F88890

ARM - pitman (#8368001 and after)

2шт.

F11932

ARM - pitman (Replaces F88541) Before #8368001

2шт.

F88541

ARM - pitman, with 2-B18282 (Replaced by F11932)

2шт.

10

3074CSA

BALL BEARING

- (each end of Ref. 2 and 21)

4шт.

11

F62108

COLLAR

1шт.

12

B18282

FLANGE

- (4 used with F88541 and 8 used with F11932)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

12шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

12шт.

92-5

LOCK WASHER,5/16"

12шт.

13

F86065

CRANK - pitman

2шт.

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

6шт.

92-7

LOCK WASHER,7/16"

6шт.

14

O2237HT

KEY - pitman crank and drive sheave

2шт.

15

193-16

LOCK WASHER,Ext Tooth, 7/8"

LOCKWASHER - for F13733 jackshaft nut (7/8")

2шт.

16

F1984

SHEAVE - pitman, L.H.

1шт.

F13803

BELT

For F1984 Sheave Ref. 16, See Page 105

1шт.

17

F88908

BEARING, BALL

BEARING

2шт.

18

F3384

COLLAR

1шт.

19

F62225

FLANGE

4шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" rhd. sq. nk.

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

20

NSS

NOT SOLD SEPARAT

BRACKET - shoe jackshaft support, L.H.

1шт.

21

F13733

SHAFT

- crank, strawwalker drive (Replaced by F30369 when stocks are exhausted)

1шт.

F30369

SHAFT

- crank, strawwalker drive (Replaces F13733 when exh.)

1шт.

22

NSS

NOT SOLD SEPARAT

BRACKET - shoe jackshaft support, R.H.

1шт.

23

F86064

SHEAVE - (14") strawwalker, w/crank

1шт.

F7865

BELT

Shoe and Grain Auger Drive, for F86064

1шт.
