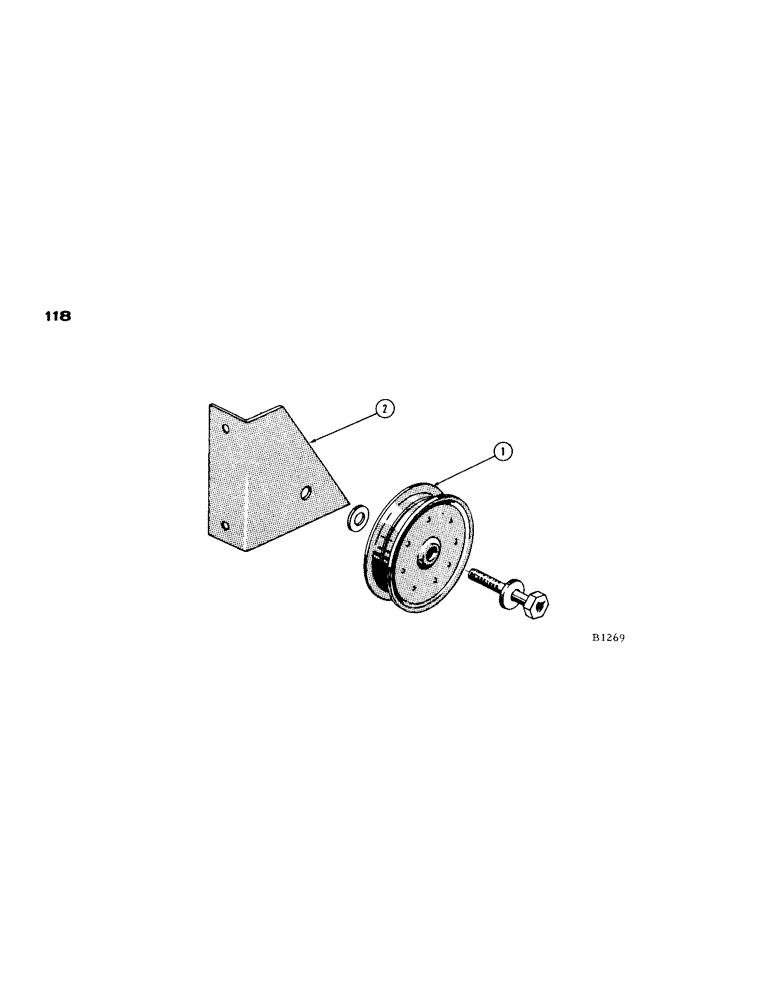

Запчасти Case IH 1660 (118) - SHOE DRIVE IDLER (74) - CLEANING

1

F6474

PULLEY

SHEAVE - shoe drive idler

1шт.

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex.

1шт.

195-41

WASHER,5/8"

- SAE std. flat 5/8"

4шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

1шт.

2

F11901

BRACKET - idler

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

F7865

BELT

Shoe and Grain Auger Drive, Not Shown

1шт.
