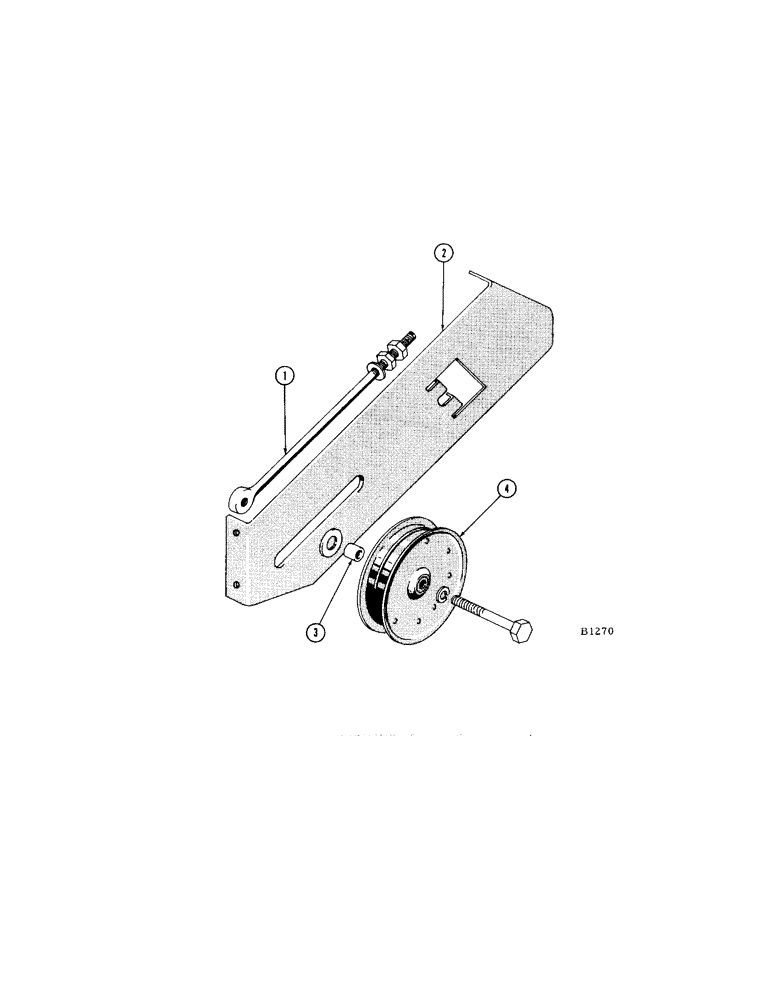

Запчасти Case IH 1660 (118[A]) - TIGHTENER, SHOE AND GRAIN AUGER DRIVE (74) - CLEANING

1

F9362

ROD - adjusting

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

195-33

WASHER,1/2"

- SAE std. flat 1/2"

1шт.

2

F11924

BRACKET - tightener

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

3

V13384

SPACER - 7/8" O.D. x 17/32" long

1шт.

4

F80073

PULLEY ASSY.

SHEAVE - (8" O.D.) belt idler

1шт.

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex.

1шт.

195-41

WASHER,5/8"

- SAE std. flat 5/8"

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

F7865

BELT

Shoe and Grain Auger Drive, Not Shown

1шт.
