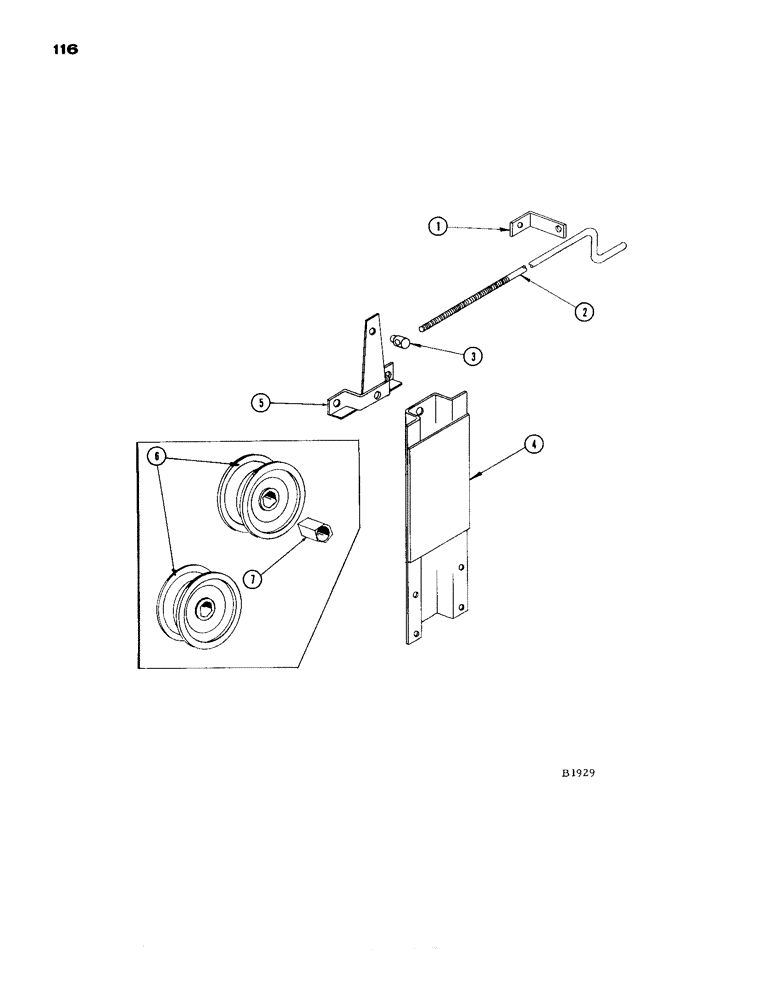

Запчасти Case IH 1660 (116) - FAN DRIVE IDLER (74) - CLEANING

1

F11008

BEARING - crank, cleaning fan

1шт.

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

2

F11215

CRANK

1шт.

135-328

PIN - 1/8" x 1" Type A-3 groove

1шт.

95-6

WASHER,3/8"

- U.S. std. flat 3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

3

F11214

TRUNNION - crank

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

4

F79096

BRACKET - idler support, fan drive

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

5

F79457

ARM - fan idler pivot

1шт.

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4

1шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex. jam

2шт.

6

F12624

PULLEY ASSY.

IDLER

2шт.

7

F12623

SPACER - for F12624 idler

2шт.

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

- 1/2" x 2-3/4" N.F. hex.

2шт.

95-8

WASHER,1/2"

U.S. std. 1/2"

4шт.

92-8

LOCK WASHER,1/2"

2шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

2шт.
