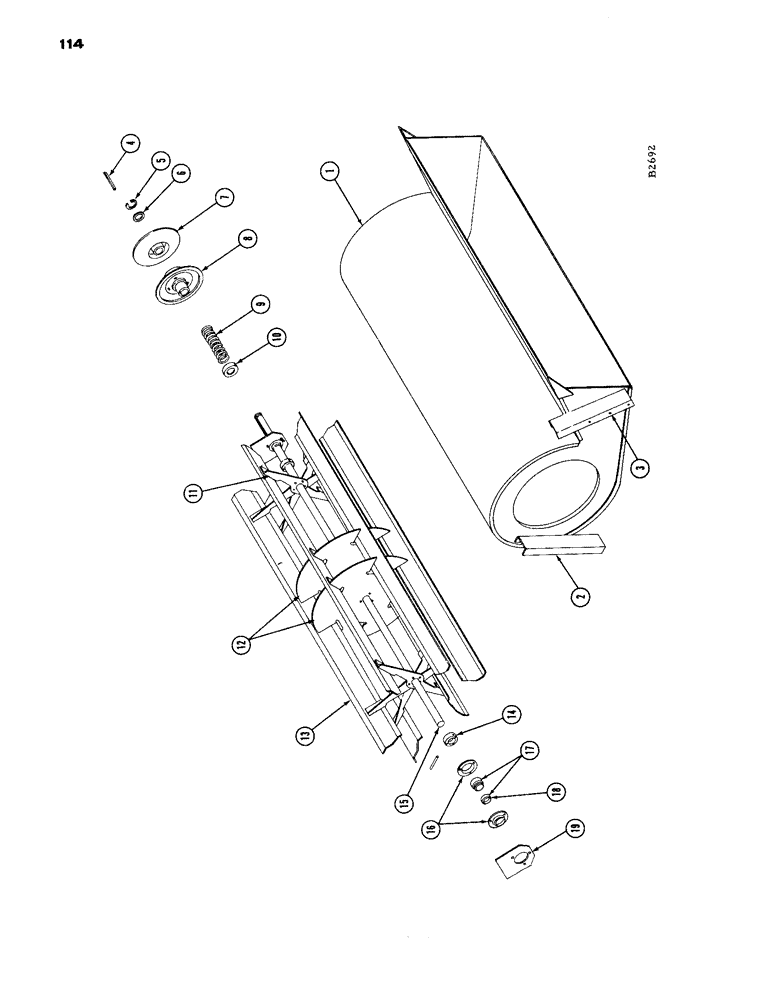

Запчасти Case IH 1660 (114) - FAN AND FAN HOUSING, SLOW FAN SPEED ATTACHMENT, HIGH FAN SPEED ATTACHMENT (74) - CLEANING

1

F87644

DRUM - fan

1шт.

2

F13615

SUPPORT

2шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd. mach.

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

25-104

NUT,1/4"-20, G5

6шт.

3

F14611

FILLER - fan

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

8шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

4шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

12шт.

4

F41422

KEY

1шт.

5

A26949

RING, SNAP

SNAP RING

1шт.

6

B18275

WASHER

1шт.

7

F1313

SHEAVE

HALF - (female)

1шт.

8

F1314

SHEAVE HALF - (male)

1шт.

9

F9021

VALVE SPRING

SPRING - compression

1шт.

10

F16078

WASHER - cup

1шт.

11

F7667

SPOKE - fan

6шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

6шт.

12

F13610

DISC - air diverter

2шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

6шт.

13

F13611

BLADE

6шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" rhd. N.C. mach.

48шт.

25-104

NUT,1/4"-20, G5

48шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

48шт.

14

F30142

HUB

4шт.

14-548

SCREW,Hex, 5/16" - 24 x 3", Gr 5

BOLT 0 5/16" x 3" N.F. hex.

4шт.

92-5

LOCK WASHER,5/16"

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

15

F13609

SHAFT

- fan

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

135-404

GROOVED PIN,1/4" x 1 3/8", Type F, Hardened

PIN - 1/4" x 1-3/8" Type A-3 driv-loc

1шт.

16

B18282

FLANGE

- for Ref. 17

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

92-5

LOCK WASHER,5/16"

6шт.

17

3074CSA

BALL BEARING

2шт.

18

F62108

COLLAR

1шт.

19

F7672

HOLDER - bearing

2шт.

F9468

BELT

Fan Drive, Medium and Slow Speed, Grain

1шт.

F10269

BELT

Fan Drive, High Speed, Corn

1шт.

F1262

SHEAVE - (5 - 3/32" O.D. and 9 - 3/4" O.D. dbl.) drives fan (on grain auger shaft) see F86142

1шт.

F1263

SHEAVE HALF - (10 - 5/16" O.D.) fan drive (on fan shaft)

2шт.

F88248

SHEAVE - (9 - 3/4" O.D. and 11" O.D. dbl.) drives grain auger and fan (on grain auger shaft)

1шт.

F12054

BUSHING

1шт.

F10269

BELT

Fan Drive, See F9468

1шт.
