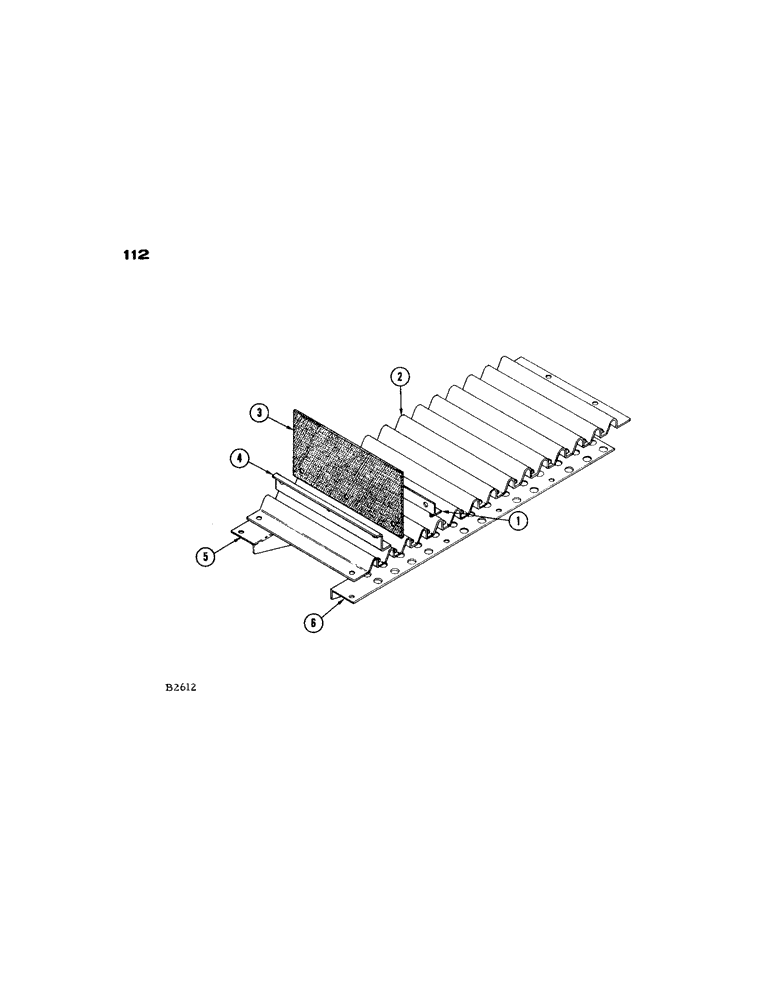

Запчасти Case IH 1660 (112) - FRONT, COB DEFLECTOR AND GRID, STIFFENER ATTACHMENT, BEFORE S/N 8359001 (74) - CLEANING

1

F88057

ANGLE - rear

5шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

10шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

2

F14492

COVER - grid, front

5шт.

3

F14999

FLIGHT - (Replaces F14061)

5шт.

4

F14060

ANGLE - front

5шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

15шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

15шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

15шт.

5

F88059

STIFFENER - grid, R.H.

5шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

20шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

25шт.

95-4

WASHER,1/4"

- SAE std 1/4"

20шт.

6

F88058

STIFFENER - grid, L.H.

5шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

20шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

25шт.

95-4

WASHER,1/4"

- SAE std. 1/4"

20шт.

F11415

CLAMP - grid cover (for rear of F14492)

5шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

10шт.
