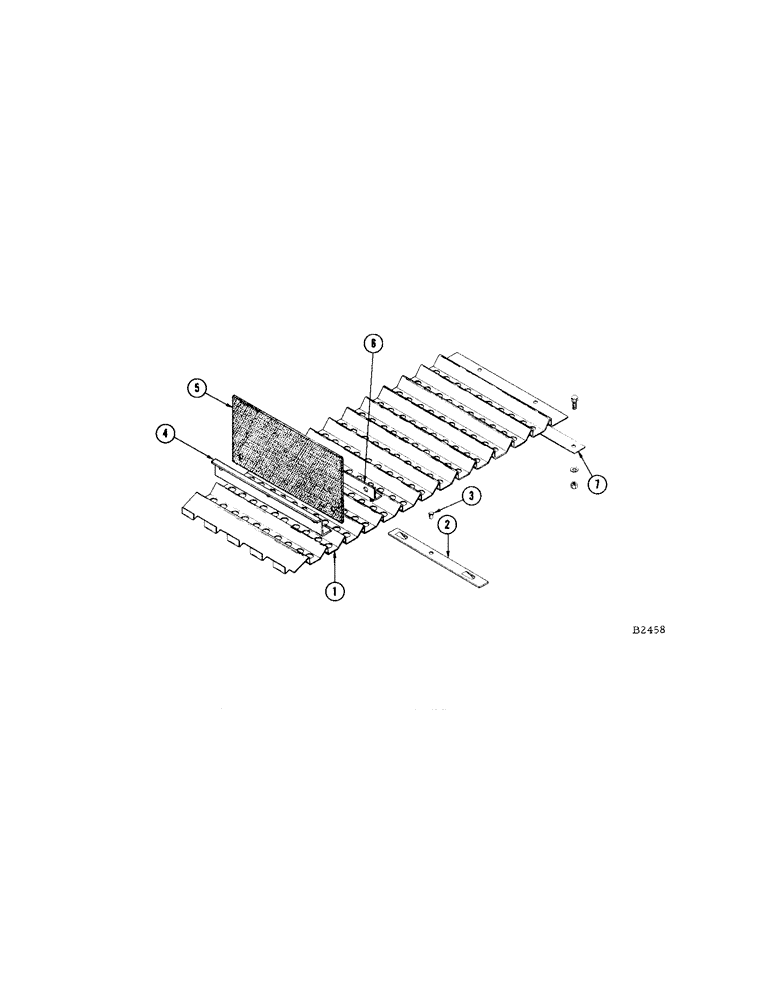

Запчасти Case IH 1660 (112[A]) - FRONT, COB DEFLECTOR AND GRID STIFFENER ATTACHMENT, S/N 8359001 AND AFTER (74) - CLEANING

1

F13200

COVER

- front grid

5шт.

2

F13201

SCREW

CLAMP - grid cover

5шт.

3

F21193

STUD - trimount

5шт.

4

F14060

ANGLE - front

5шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

15шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5; and LW (192-19)

15шт.

5

F14999

FLIGHT

5шт.

6

F88057

ANGLE - rear

5шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5; and LW (192-19)

10шт.

7

F11415

CLAMP - grid cover

5шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

10шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5; and LW (192-19)

10шт.
