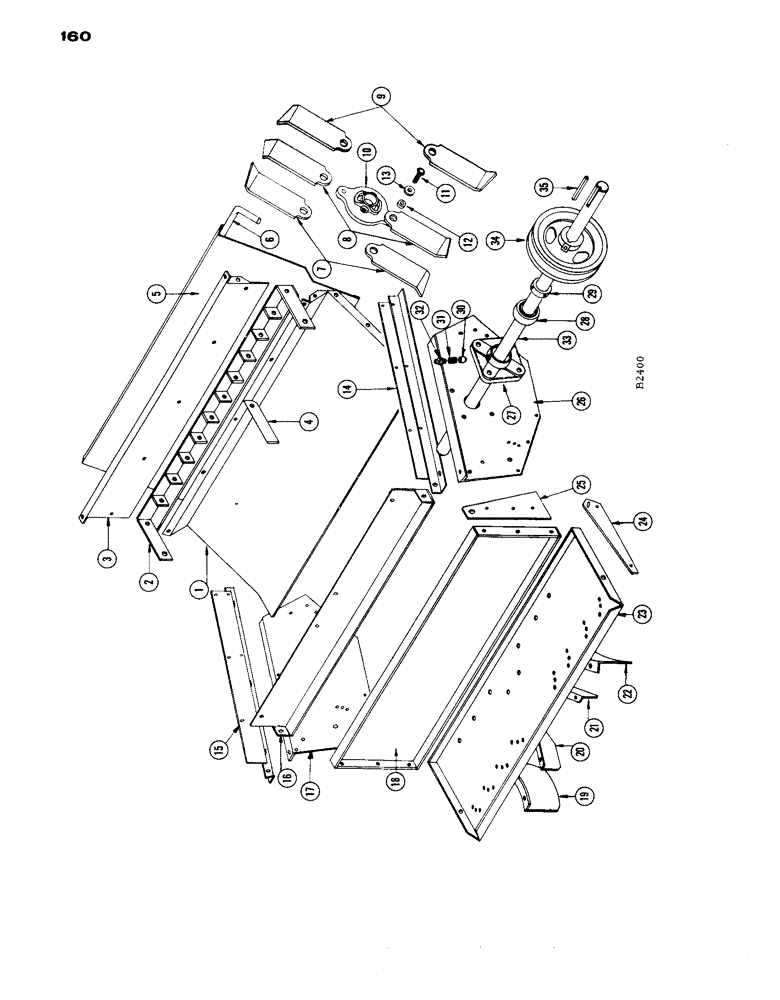

Запчасти Case IH 1660 (160) - INNES STRAWCHOPPER ATTACHMENT (73) - RESIDUE HANDLING

1

F14026

SHEET - bottom

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

12шт.

191-904

NUT - 5/16" N.C. spinlock

12шт.

2

F87647

FRAME - retarder knife

1шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

3

F14027

SHEET - front

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

77-510

SCREW,Spcl, #6

- 5/16" x 5/8" tr. hd. hd. N.C. mach.

11шт.

191-904

NUT - 5/16" N.C. spinlock

15шт.

4

F19527

KNIFE

- retarder

14шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

14шт.

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" N.C. lock

14шт.

5

F87656

STRAWSLIDE

1шт.

6

F14033

ROD - strawslide

1шт.

195-521

WASHER,5/16", SAE

- 5/16" plain

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

7

F82876

HAMMERS - (pair of L.H.)

1шт.

8

F82874

HAMMERS - (pair of R.H. and L.H.

13шт.

9

F82875

HAMMERS - (pair of R.H.)

1шт.

10

F1599

HOLDER - hammer

15шт.

86-612

SCREW - 3/8" x 3/4" N.F. sq. hd. set

30шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

30шт.

11

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

30шт.

92-6

LOCK WASHER,3/8"

30шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

30шт.

12

F19529

BUSHING - (3/4" O.D. x 3/8" I.D. x 1/4" long) hammer holder

30шт.

13

F19530

WASHER - (1-1/8" O.D. x 25/64" I.D. x 3/16" thick) hammer holder bolt

30шт.

14

F87107

PANEL - R.H., mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

F87106

PANEL - L.H., mounting

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

F14031

PANEL - rear

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

10шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

129-122

NUT,5/16"-24, G5

10шт.

17

F13168

PANEL - side, L.H.

1шт.

18

F14028

SHEET - rear

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

191-904

NUT - 5/16" N.C. spinlock

8шт.

19

F13187

VANE - long, L.H.

4шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. tr. hd. mach.

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

20

F19535

VANE - short, L.H.

1шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. tr. hd. mach.

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

21

F19536

VANE - short, R.H.

1шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. tr. hd. mach.

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

22

F13188

VANE - long, R.H.

4шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. tr. hd. mach.

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

23

F14030

PAN - spreader

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

195-525

WASHER,3/8", SAE

2шт.

192-2

LOCKWASHER - 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

F13186

BRACE - spreader pan

2шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

F13184

PLATE - hinge

2шт.

26

F13180

PANEL - side, R.H.

1шт.

F84273

BEARING - complete, cutter shaft

2шт.

27

F1695

HOUSING - bearing

1шт.

28

F84274

BEARING

- cutter shaft

1шт.

29

F21378

COLLAR

1шт.

84-57

SCREW - 5/16" - 24 x 7/16" hex. socket hd. set

2шт.

30

F21379

CARRIAGE BOLT

RETAINER - race

1шт.

31

F21380

SPRING

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

8шт.

92-8

LOCK WASHER,1/2"

8шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

8шт.

33

F14029

SHAFT

1шт.

34

F1988

SHEAVE - chopper

1шт.

83-68

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - 3/8" x 1/2" N.C. socket hd. set

2шт.

35

F18232

KEY - (5/16" sq. x 1-1.2") F1988 sheave, Ref. 34

1шт.
