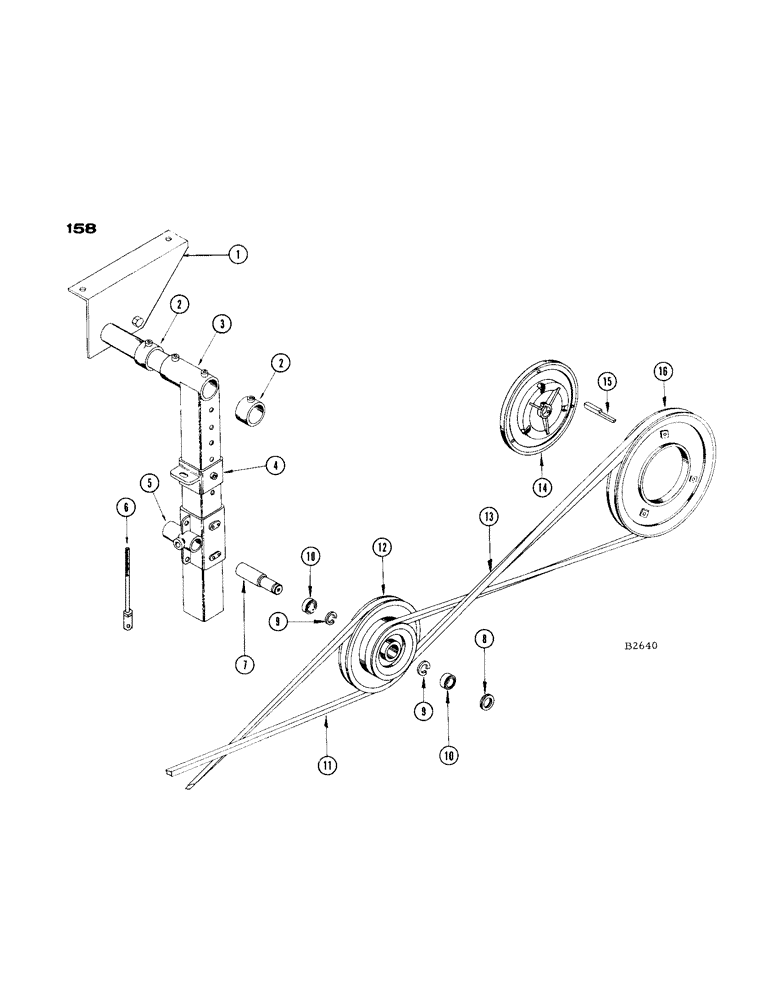

Запчасти Case IH 1660 (158) - INNES STRAWCHOPPER ATTACHMENT, STRAWCHOPPER DRIVE (73) - RESIDUE HANDLING

1

F87651

BRACKET - hanger

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex.

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-123

NUT,3/8"-24, G5

2шт.

2

F1601

COLLAR - adjusting, hanger

2шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. sq. hd. set

2шт.

3

F82884

HANGER

1шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

2шт.

4

F1600

STOP - for F82884 hanger (Ref. 3)

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

92-6

LOCK WASHER,3/8"

1шт.

85-608

SCREW - 3/8" x 1/2" N.C. sq. hd. set

1шт.

5

F1602

BRACKET - jackshaft

1шт.

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8" x 1/2" N.C. hex.

4шт.

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - 3/8" x 3/4" N.C. sq. hd. set

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex

1шт.

195-21

WASHER,5/16"

- plain 5/16"

1шт.

92-5

LOCK WASHER,5/16"

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" SAE std.

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

6

F82878

SCREW - adjusting

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

2шт.

7

F19543

JACKSHAFT

1шт.

8

F19544

RING - retaining

1шт.

9

A27150

RING

SNAP RING

2шт.

10

F19545

BEARING, BALL

BEARING

2шт.

11

F12180

BELT

"V" BELT - rear

1шт.

12

F1603

PULLEY

1шт.

13

F19549

V-BELT,153.00" L

Front 153.00" L

1шт.

14

F1606

HUB - drive, for F1605 when machine is equipped with chain cylinder drive

1шт.

83-612

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - 3/8" x 3/4" N.C. socket hd. set

2шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

2шт.

15

O8065HT

KEY

- (3/8" sq. x 1-7/16") for F1606 hub (Ref. 14)

1шт.

16

F1605

SHEAVE - cutter drive

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
