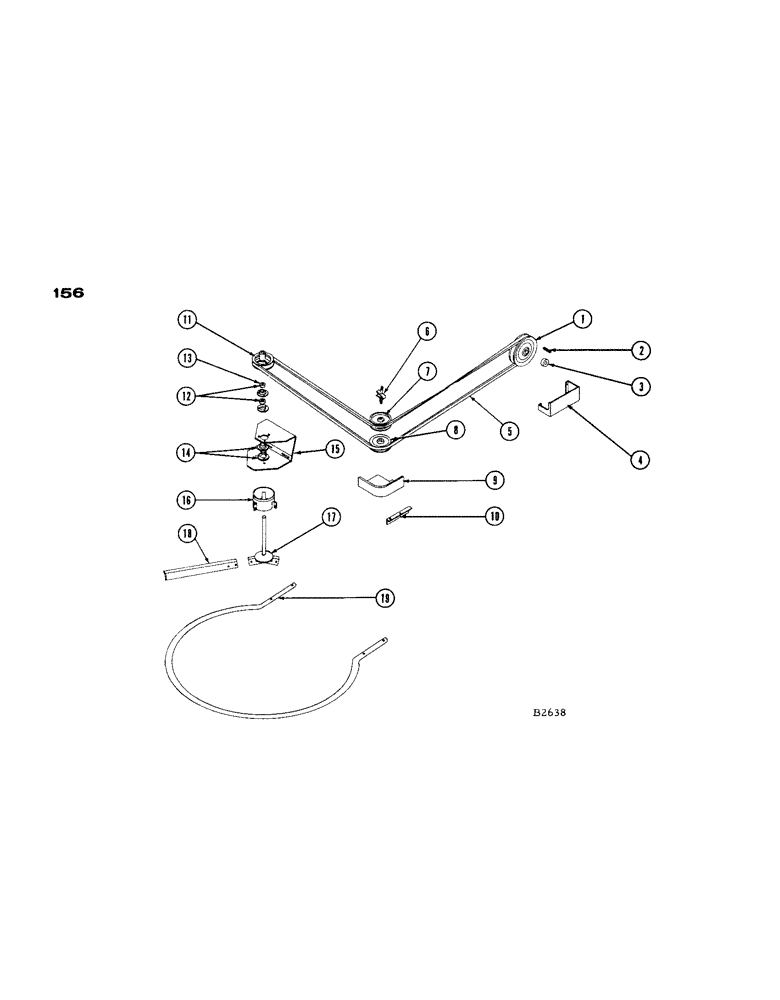

Запчасти Case IH 1660 (156) - STRAWSPREADER ATTACHMENT (73) - RESIDUE HANDLING

1

F87706

SHEAVE - on rear strawwalker crankshaft, drives spreader

1шт.

2

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

For F87706 sheave #C, 5/16" x 1 1/8"

1шт.

3

127CS

COLLAR - lock, for F87706

1шт.

132-156

PIN

- cotter, 1/4" x 2-1/4"

1шт.

4

F14058

SHIELD - drive belt

1шт.

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- 1/4" x 1/2" N.F. hex.

2шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex.

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

129-121

NUT,1/4"-28, G5

3шт.

5

O2179CK

V-BELT 169.75" L, Spreader drive 169.75" L

1шт.

6

F87705

POST - idler sheaves, with sheave stop

1шт.

195-41

WASHER,5/8"

- SAE std. flat 5/8"

5шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

7

F6474

PULLEY

SHEAVE - idler, upper (6")

1шт.

8

F19311

PULLEY

SHEAVE - idler, lower (5-7/32")

1шт.

9

F87704

SHIELD - idler sheaves

1шт.

10

F14054

BAR - support

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

44CS

PULLEY - spreader shaft, driven

1шт.

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

BOLT - 5/16" x 2-1/4" N.F. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

12

3074CSA

BALL BEARING

- spreader shaft

2шт.

13

F62108

COLLAR

1шт.

14

B18282

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

92-5

LOCK WASHER,5/16"

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

15

F14050

BRACKET - spreader mounting

1шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

195-521

WASHER,5/16", SAE

- 5/16" flat

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

F9567

SHIELD - for paddles

1шт.

17

F86186

SHAFT - spreader, with supports

1шт.

18

F14056

PADDLE

3шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

19

F14049

GUARD - spreader paddles

1шт.

114-106

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.F. hex.

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

129-122

NUT,5/16"-24, G5

2шт.

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-123

NUT,3/8"-24, G5

2шт.
