(112[B]) - REAR STRAWWALKER GRID COVER ATTACHMENT

Запчасти Case IH 1660 (112[B]) - REAR STRAWWALKER GRID COVER ATTACHMENT (72) - SEPARATION

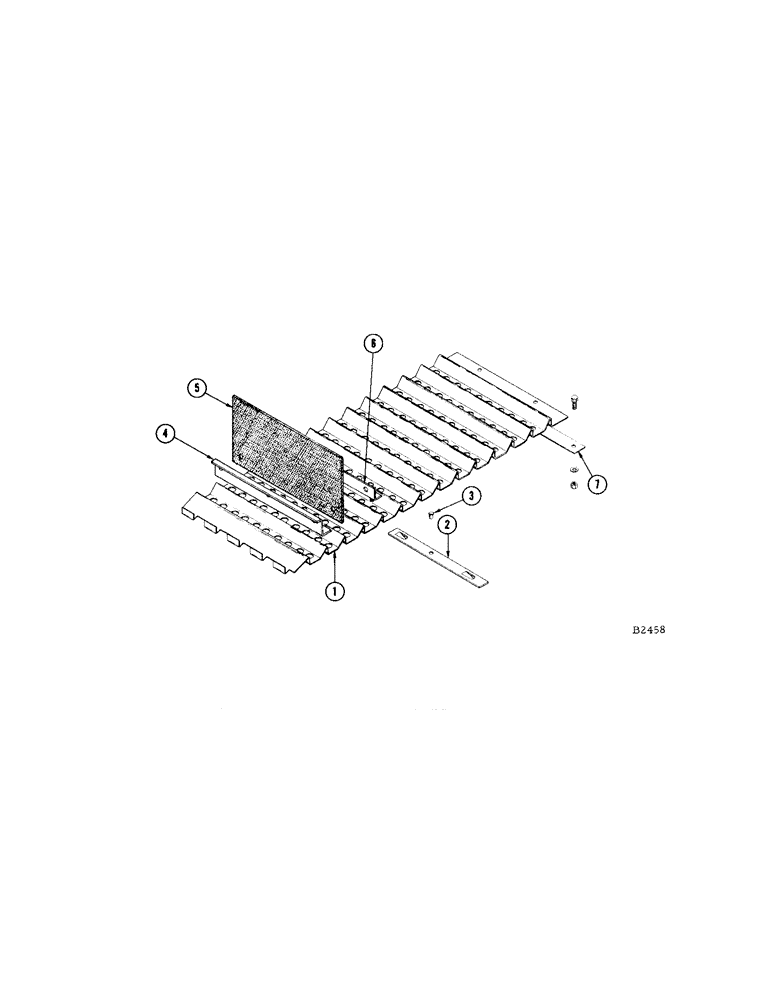

Схема запчастей Case IH 1660 - (112[B]) - REAR STRAWWALKER GRID COVER ATTACHMENT (72) - SEPARATION
4
7
2
6
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F13200

COVER

- grid, strawwalker

20шт.

2

F13201

SCREW

CLAMP - grid cover

20шт.

3

F21193

STUD - trimount, for F13200 and F13201

20шт.

7

F11415

CLAMP - grid cover

20шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex.

40шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

40шт.

129-121

NUT,1/4"-28, G5

40шт.
