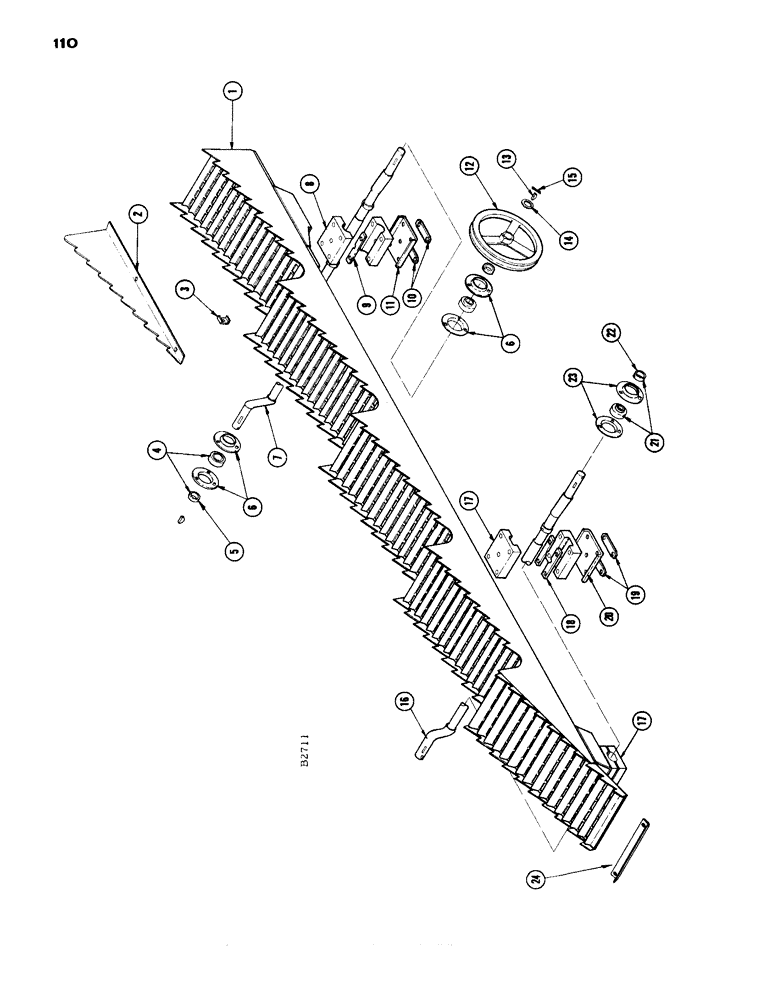

Запчасти Case IH 1660 (110) - STRAWWALKER AND DRIVE (72) - SEPARATION

1

F87438

STRAWWALKER - (Before #8359001) Replaced by F88712 when stocks are exhausted.

5шт.

F88712

STRAW WALKER

STRAWWAKER - (#8359001 and after) Replaces F87438

5шт.

2

F11679

RISER - center

10шт.

3

F13202

CLIP - center riser

20шт.

11-416

BOLT (MACHINE)

BOLT - 1/4" x 1" rhd. sq. nk.

20шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

25-104

NUT,1/4"-20, G5

20шт.

4

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - each end of Ref. 7

2шт.

5

F62226

COLLAR

1шт.

6

F62225

FLANGE

TTE

4шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

7

F87669

CRANKSHAFT

- rear

1шт.

8

F87663

BEARING

- (set of 2)

5шт.

9

F13623

SHIM

1шт.

10

O9751HT

LOCKWASHER - strap

2шт.

111-223

CARRIAGE BOLT,Short NK, 5/16"-18 x 3 1/4", G2

BOLT - 5/16" x 3-1/4" rhd. sq. nk.

4шт.

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- 5/16" N.C. sq.

4шт.

7

F88666

CRANK

SHAFT - rear #8359001 and after (Replaces F87669)

1шт.

8

F88669

BEARING - (set of 2)

5шт.

9

F30115

SHIM

1шт.

10

O9751HT

LOCKWASHER - strap

2шт.

111-223

CARRIAGE BOLT,Short NK, 5/16"-18 x 3 1/4", G2

BOLT - 5/16" x 3-1/4" rhd. sq. nk.

4шт.

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- 5/16" N.C. sq.

4шт.

11

F7820

CAP - bearing, rear

5шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

5шт.

12

F1981

SHEAVE - strawwalker

1шт.

13

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

1шт.

14

F60899

WASHER

1шт.

15

132-152

PIN

- cotter, 1/4" x 1-3/4" (rear crankshaft)

1шт.

16

F87668

CRANKSHAFT - front

1шт.

17

F87661

BEARING - (set of 2)

5шт.

18

F13623

SHIM

1шт.

19

O9751HT

LOCKWASHER - strap

2шт.

111-223

CARRIAGE BOLT,Short NK, 5/16"-18 x 3 1/4", G2

BOLT - 5/16" x 3-1/4" rhd. sq. nk.

4шт.

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- 5/16" N.C. sq.

4шт.

16

F88665

CRANKSHAFT - front, #8359001 and after (Replaces F87668)

1шт.

17

F88670

BEARING - (set of 2)

5шт.

18

F30115

SHIM

1шт.

19

O9751HT

LOCKWASHER - strap

2шт.

111-224

CARRIAGE BOLT,Short NK, 5/16"-18 x 2 3/4", G2

BOLT - 5/16" x 2-3/4" rhd. sq. nk.

4шт.

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- 5/16" N.C. sq.

4шт.

20

F7820

CAP - bearing, front

5шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

5шт.

21

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - each end of Ref. 16

2шт.

22

F62226

COLLAR

1шт.

23

F62225

FLANGE

TTE

4шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

24

F14940

CLIP - grid support, for F88712

5шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

10шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

25-104

NUT,1/4"-20, G5

10шт.
