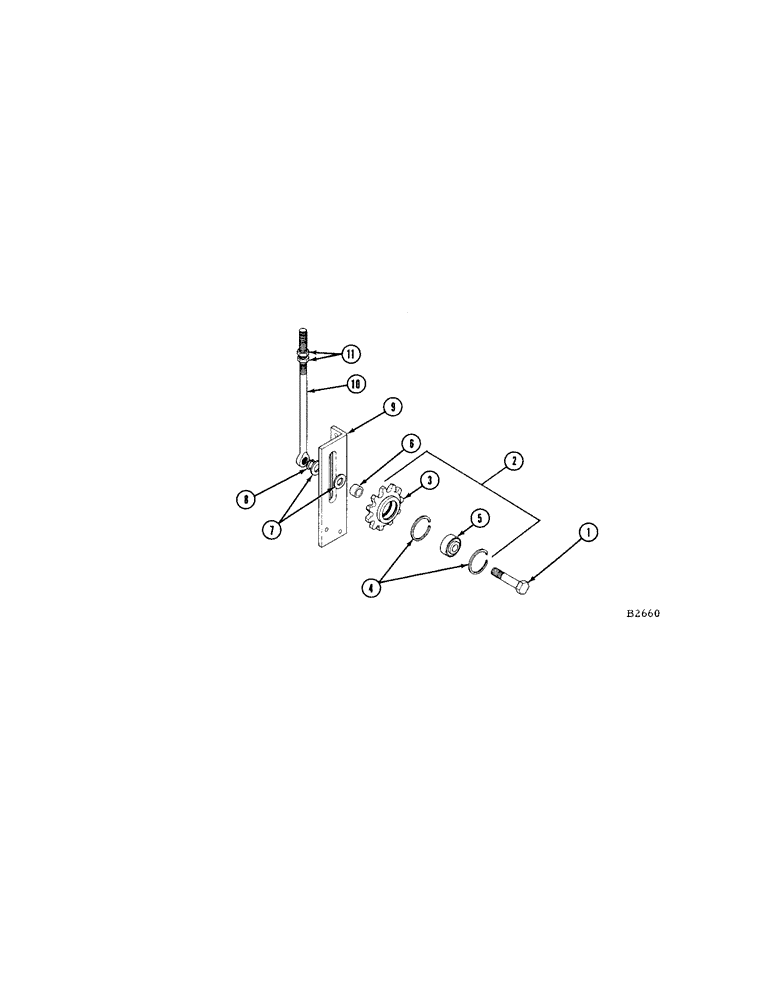

Запчасти Case IH 1660 (088[A]) - BEATER DRIVE TIGHTENER (72) - SEPARATION

1

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex.

1шт.

2

F87294

SPROCKET and BEARING ASSEMBLY, Includes: Ref. 3 - 5, Serial Range: -8368001

1шт.

3

NSS

NOT SOLD SEPARAT

SPROCKET - idler, Serial Range: -8368001

1шт.

4

O3338BF

SNAP RING, Serial Range: -8368001

2шт.

5

F16246

BEARING, BALL

BEARING, Serial Range: -8368001

1шт.

2

F88944

SPROCKET and BEARING ASSEMBLY, Includes: Ref. 3 - 5, Start Serial: 8368001

1шт.

3

NSS

NOT SOLD SEPARAT

SPROCKET - idler, Start Serial: 8368001

1шт.

4

O3338BF

SNAP RING, Start Serial: 8368001

2шт.

5

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BEARING, Start Serial: 8368001

1шт.

6

VC1450

BUSHING

SPACER - (7/8" O.D. x 15/32" - 12 ga.)

1шт.

7

195-41

WASHER,5/8"

- SAE std. flat 5/8"

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

F14484

BRACKET - idler, Serial Range: -8368001

1шт.

14-622

SCREW

BOLT - 3/8" x 1-3/8" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

10

F9362

ROD - adjusting

1шт.

11

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.
