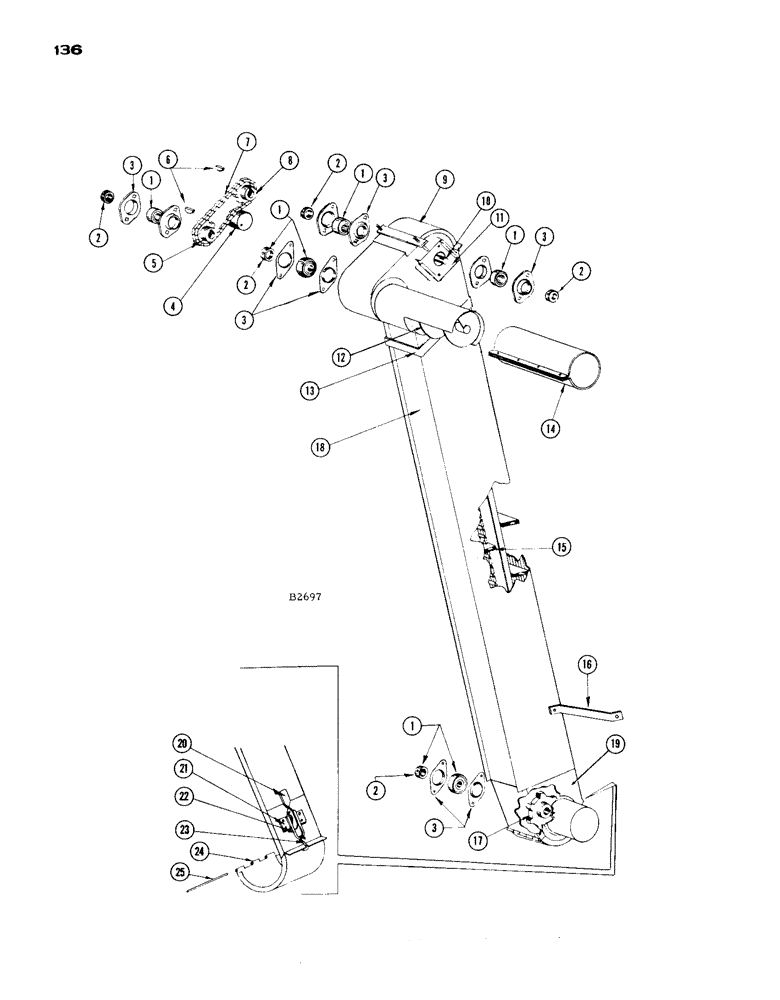

Запчасти Case IH 1660 (136) - TAILINGS ELEVATOR (66) - THRESHING

1

F90306

BEARING ASSY

BEARING - tailings elevator

5шт.

2

O4233CS

COLLAR

1шт.

3

F9417

FLANGE

- for F90306 bearing

10шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

12-512

BOLT

- 5/16" x 3/4" rhd. sh. sq. nk.

6шт.

92-5

LOCK WASHER,5/16"

10шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

10шт.

4

305-1/2CH

IDLER - discharge auger drive

1шт.

11-652

BOLT - 3/8" x 3-1/4" rhd. sq. nk. Short NK, 3/8"-16 x 3 1/4", G2

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

195-25

WASHER,3/8"

- SAE std. flat 3/8"

1шт.

5

F76947

SPROCKET - (15T) discharge auger drive, driven

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

For ref. 5 and 8 #A, 1/4" x 7/8"

2шт.

7

F7904

X

CHAIN - discharge auger drive (NSS - see chain page)

1шт.

8

F76981

SPROCKET - (22T) discharge auger drive (on upper shaft)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

9

F76970

COVER - upper head

1шт.

113-114

BOLT - 5/16" x 4-1/4" N.C. hex.

4шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

129-419

WING NUT,5/16"-18

- 5/16" N.C.

4шт.

10

F6571

SHAFT - upper elevator, discharge auger drive

1шт.

11

F7901

HOLDER - elevator

2шт.

12

F79824

AUGER - tailings discharge

1шт.

13

F77059

SCREW

SUPPORT - upper, for tailings elevator ("U" shaped)

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

F14486

WRAPPER - reinforcing, tailings discharge tube

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

4шт.

131-1

LOCK NUT,1/4"-28, GB

NUT - 1/4" - 28 Esna lock

4шт.

15

F79436

X

CHAIN - conveyor (NSS) #55 (see chain page) consists of 2-F86425, 1-coupler link and 1-plain link

1шт.

15

F88525

CHAIN - conveyor, #CA550 - 5 inch flight (See chain page) consists of 40 flights

1шт.

16

F14895

SUPPORT - lower elevator

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

17

51B

SPROCKET ASSY.

SPROCKET - (7T) upper and lower shafts

2шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

2шт.

18

F88401

BODY - elevator, with upper head

1шт.

19

F88778

LOWER HEAD - (Replaces F88402)

1шт.

20

O313CS

HANDLE - latch

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

21

O314CS

BRACKET - latch handle

2шт.

49-35

RIVET - 3/16" x 5/16" W.B.

4шт.

12-410

BOLT - 1/4" x 5/8" rhd. short sq. nk.

9шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

25-104

NUT,1/4"-20, G5

and lockwasher (92-4) 1/4"-20, G5

11шт.

22

O316CS

SPRING - latch handle

1шт.

23

O315CS

HOOK - latch, lower head cover

1шт.

24

F78417

COVER - lower head (Replaced by F88405 when stock is exh.)

1шт.

F88405

COVER - lower head (Replaces F78417)

1шт.

25

O309CS

PIN - hinge

1шт.
