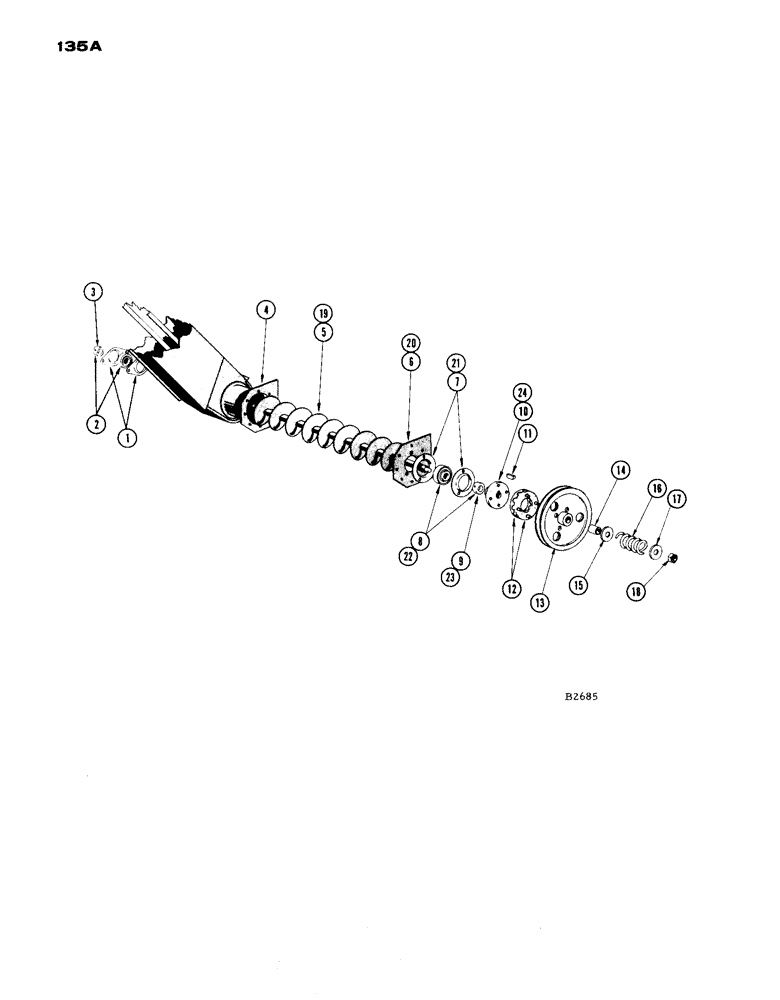

Запчасти Case IH 1660 (135A) - TAILINGS AUGER (66) - THRESHING

1

F9417

FLANGE

- for F90306 bearing, Ref. 2

2шт.

2

F90306

BEARING ASSY

BEARING - auger shaft, R.H.

1шт.

3

O4233CS

COLLAR

1шт.

4

F7832

FLANGE - tailings auger, R.H. side

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

5

F87497

AUGER - tailings (Before #8321261)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), (for Ref. 5) 3/16" x 2"

1шт.

6

F7833

BRACKET - bearing, L.H. (Before #8321261)

1шт.

7

B18282

FLANGE

- bearing (Before #8321261)

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

3шт.

8

3074CSA

BALL BEARING

- auger shaft, L.H. (Before #8321261)

1шт.

9

F62108

COLLAR

- (Before #8321261)

1шт.

10

143CS

PLATE

- hub, jump clutch (Before #8368001) (exh. then use F89322)

1шт.

F89322

SCRAPER

PLATE - hub, jump clutch (Before #8368001) (Replaces 143CS when exhausted)

1шт.

11

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

12

T16665

RING - clutch

2шт.

13

F87498

SHEAVE - tailings auger drive (See F88488)

1шт.

F88488

SHEAVE - hi-speed tailings auger drive

1шт.

14

F11042

BEARING

BUSHING - (for F87498 or F88488)

1шт.

15

O3885A

WASHER

- (1-9/16" O.D. x 29/32" I.D. #12 ga.)

1шт.

16

O1090CH

SPRING

- jump clutch

1шт.

17

A26376

WASHER

- (9/16" O.D. x 25/32" I.D. #12 ga.)

1шт.

18

131-37

LOCK NUT,3/4"-16

NUT - NF Esna #29 NTE 126 3/4"-16

1шт.

19

F88238

AUGER - tailings (#8321261 and after)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), (for Ref. 19) 3/16" x 2"

1шт.

20

F14625

BRACKET - bearing, L.H. (#8321231 and after)

1шт.

21

F62225

FLANGE

- bearing (#8321261 and after)

2шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. and l.w. (92-6)

3шт.

22

1443CKA

BALL BEARING

BEARING - auger shaft, L.H. (#8321261 and after)

1шт.

23

F62234

COLLAR

- (#8321261 and after)

1шт.

24

F2906

HUB

- jump clutch (#8321261 and after)

1шт.
