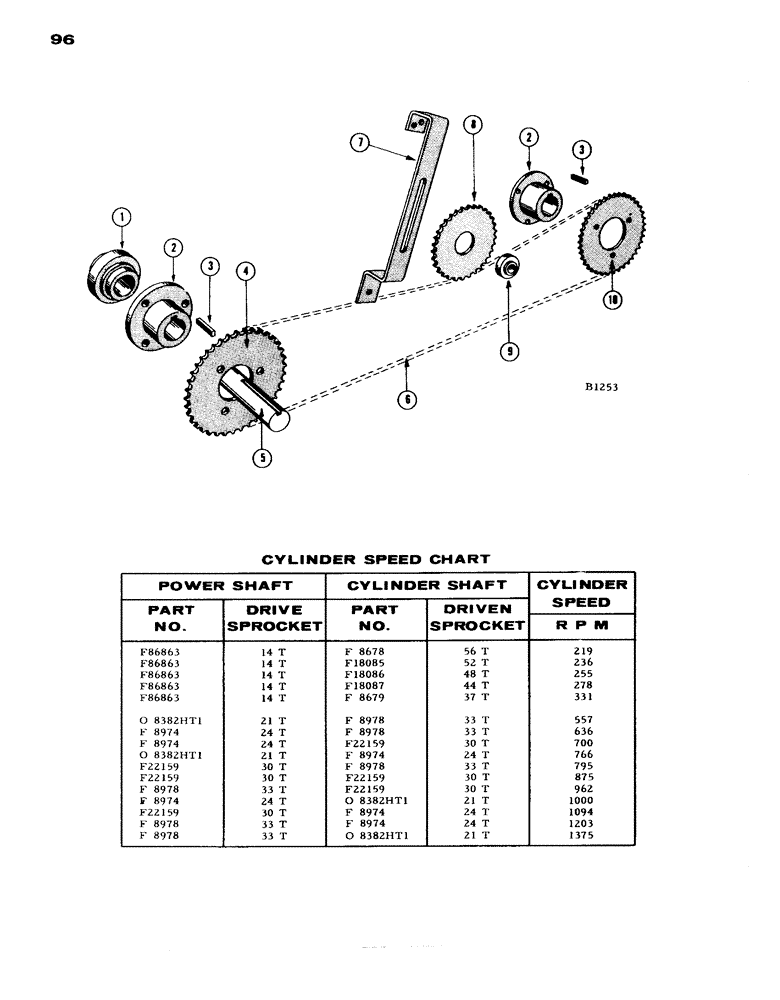

Запчасти Case IH 1660 (096) - CYLINDER, CHAIN DRIVE ATTACHMENT, SINGLE STRAND, SLOW CYL. SPEED ATTACHMENT (66) - THRESHING
№
Артикул
Название
Примечание
Количество
1
F84032
BEARING
- main drive shaft (ref. only)
1шт.
F62107
COLLAR
1шт.
2
F86861
FLANGE - sprocket mounting
2шт.
114-203
BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5
- 3/8" x 1-1/2" N.F. hex.
6шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
129-123
NUT,3/8"-24, G5
6шт.
3
F12613
KEY - for Ref. 2
2шт.
4
F8974
SPROCKET ASSY.
SPROCKET - (24T) cylinder drive
1шт.
O8382HT1
SPROCKET - (21T) cylinder drive
1шт.
5
F13689
SHAFT - main drive, V.S. (ref. only)
1шт.
6
F9024
X
CHAIN - cylinder drive (NSS - see chain page)
1шт.
7
F86859
BRACKET - idler (Replaced by F88564 when stock is exh.)
1шт.
F88564
BRACKET - idler (Replaces F86859)
1шт.
114-104
BOLT,Hex, 5/16" - 24 x 1", Gr 5
- 5/16" x 1" N.F. hex.
2шт.
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
129-122
NUT,5/16"-24, G5
2шт.
F30001
BRACE - idler bracket (for F88564)
1шт.
8
F77429
SPROCKET - (21T) idler
1шт.
9
F7293
BEARING
1шт.
114-601
BOLT
BOLT - 5/8" x 2-1/2" N.F. hex., for Ref. 9
1шт.
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
195-108
WASHER,5/8"
- flat 5/8"
1шт.
129-127
NUT,5/8"-18, G5
1шт.
F12853
SPACER - (2" O.D. x 5-7/8" long) not shown
2шт.
10
F8978
SPROCKET - (33T) cylinder, driven
1шт.
F22159
SPROCKET - (30T) cylinder, driven (replaced O2918BF1)
1шт.
B12509
DRAG LINK
LINK - connecting, #60 roller chain
1шт.
B12510
CHAIN LINK
LINK - offset, #60 roller chain
1шт.
B12511
LINK
- roller, #60 roller chain
1шт.
F18085
SPROCKET - (52T) cylinder drive, driven
1шт.
F18086
SPROCKET - (48T) cylinder drive, driven
1шт.
F18087
SPROCKET - (44T) cylinder drive, driven
1шт.
F8678
SPROCKET - (56T) cylinder drive, driven
1шт.
F8679
SPROCKET - (37T) cylinder drive, driven
1шт.
F86863
SPROCKET and HUB - (14T) cylinder drive
1шт.
Выбрано товаров: 36
