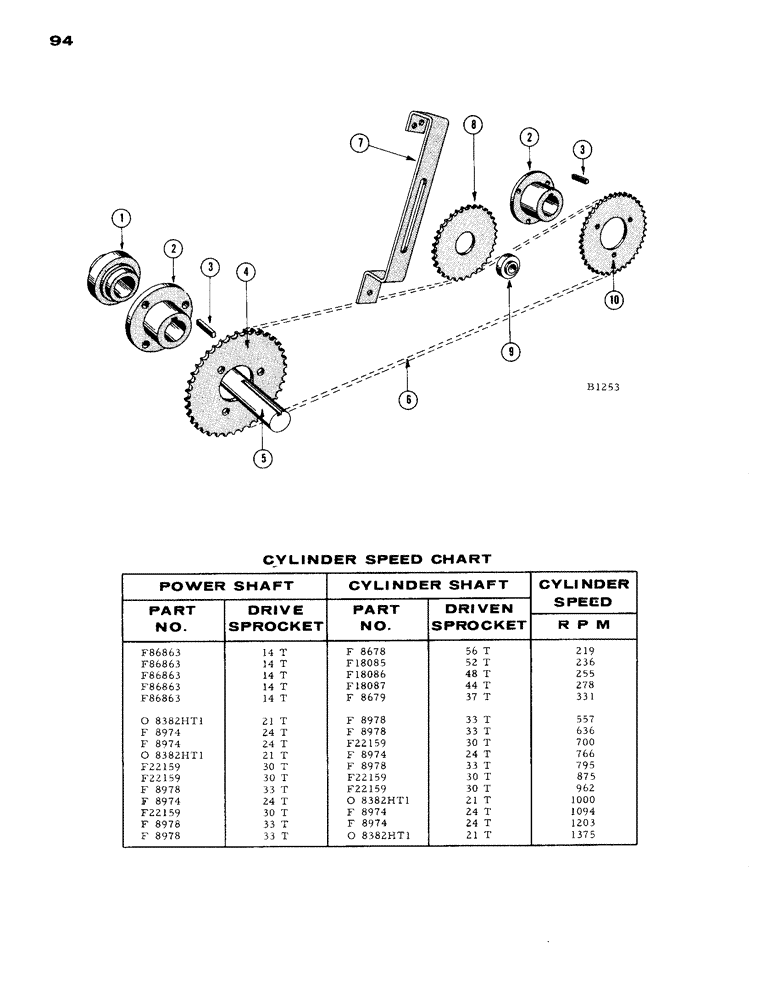

Запчасти Case IH 1660 (094) - CHAIN DRIVE CYLINDER, SINGLE STRAND (66) - THRESHING

1

F84032

BEARING

- main drive shaft

1шт.

F62107

COLLAR

1шт.

2

F76882

HUB - flanged for Ref. 4 and 10

2шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - 3/8" x 3/4" sq. hd. N.D. cup pt. set

4шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

4шт.

3

A26494

KEY - for Ref. 2

2шт.

4

F8974

SPROCKET ASSY.

SPROCKET - (24T) cylinder drive

1шт.

O8382HT1

SPROCKET - (21T) cylinder drive

1шт.

5

F13690

SHAFT - main drive

1шт.

6

F9024

X

CHAIN - cylinder drive (NSS - see chain page)

1шт.

7

F86077

BRACKET - idler

1шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" x 1" N.F. hex.

2шт.

129-122

NUT,5/16"-24, G5

2шт.

114-601

BOLT

BOLT - 5/8" x 2-1/2" N.F. hex.

1шт.

129-127

NUT,5/8"-18, G5

1шт.

195-108

WASHER,5/8"

- plain 5/8"

4шт.

8

F77429

SPROCKET - (21T) idler, cylinder drive

1шт.

9

F7293

BEARING

1шт.

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex. (for F7293)

1шт.

195-41

WASHER,5/8"

- SAE std. flat 5/8"

5шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

1шт.

10

F8978

SPROCKET - (33T) driven

1шт.

F22159

SPROCKET - (30T) driven - replaces O2918 BF1

1шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex.

3шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

F13657

SHAFT - cylinder, chain drive, rub bar (not shown)

1шт.

F13664

SHAFT - cylinder, chain drive, spike tooth (not shown)

1шт.

F30422

SPACER - for F13664 shaft

1шт.
