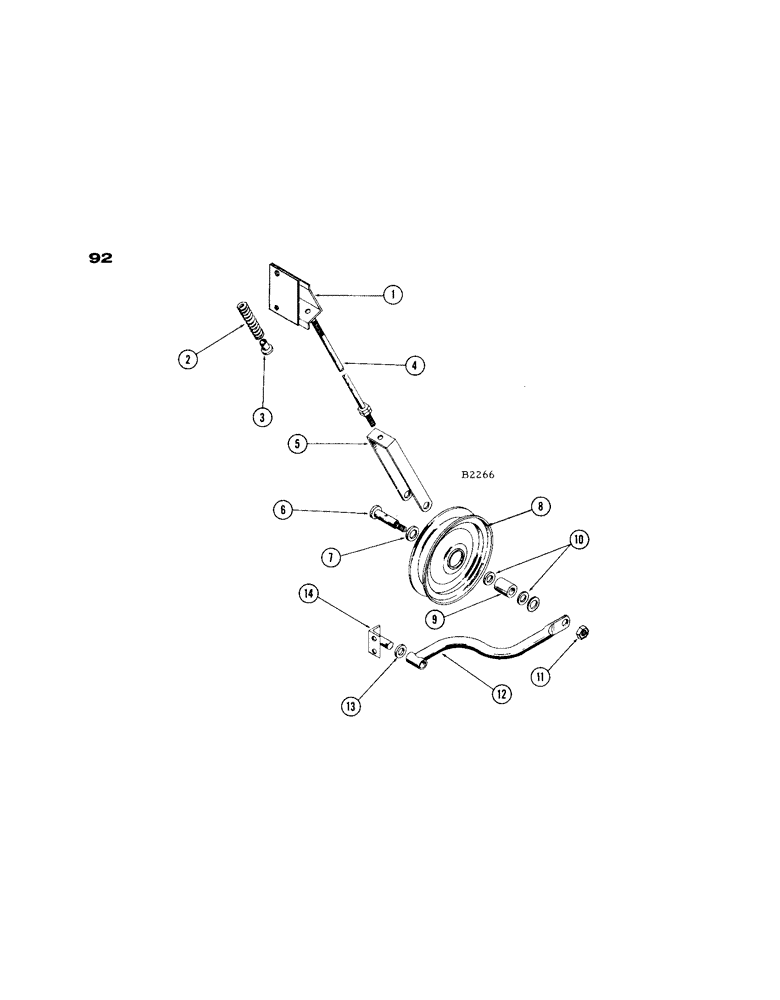

Запчасти Case IH 1660 (092) - VARIABLE SPEED CYLINDER DRIVE, BELT TAKE UP ASSEMBLY (66) - THRESHING

1

F88501

ANCHOR

- (Replaces F14172)

1шт.

F14172

ANCHOR

- (Replaced by F88501 when stock is exh.)

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

2

126EB

SPRING - compression

1шт.

3

F19583

BUSHING - plastic

1шт.

4

F12608

SCREW - idler adjusting

1шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" N.F. Esna #29NE054

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

129-122

NUT,5/16"-24, G5

2шт.

95-6

WASHER,3/8"

- U.S. std 3/8"

1шт.

5

F12609

STRAP - control

1шт.

6

F12610

SHAFT

- idler

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

7

O3739CK

X

WASHER - flat, 1 each side of idler sheave

2шт.

8

F86719

SHEAVE - idler

1шт.

9

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING - needle

1шт.

10

F12607

OIL SEAL

SEAL - oil

2шт.

11

131-37

LOCK NUT,3/4"-16

NUT - #49 NTE - 126 Esna, for Ref 6

1шт.

12

F86717

ARM - pivot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

13

F62242

WASHER

1шт.

14

F86716

PIVOT

1шт.

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.
