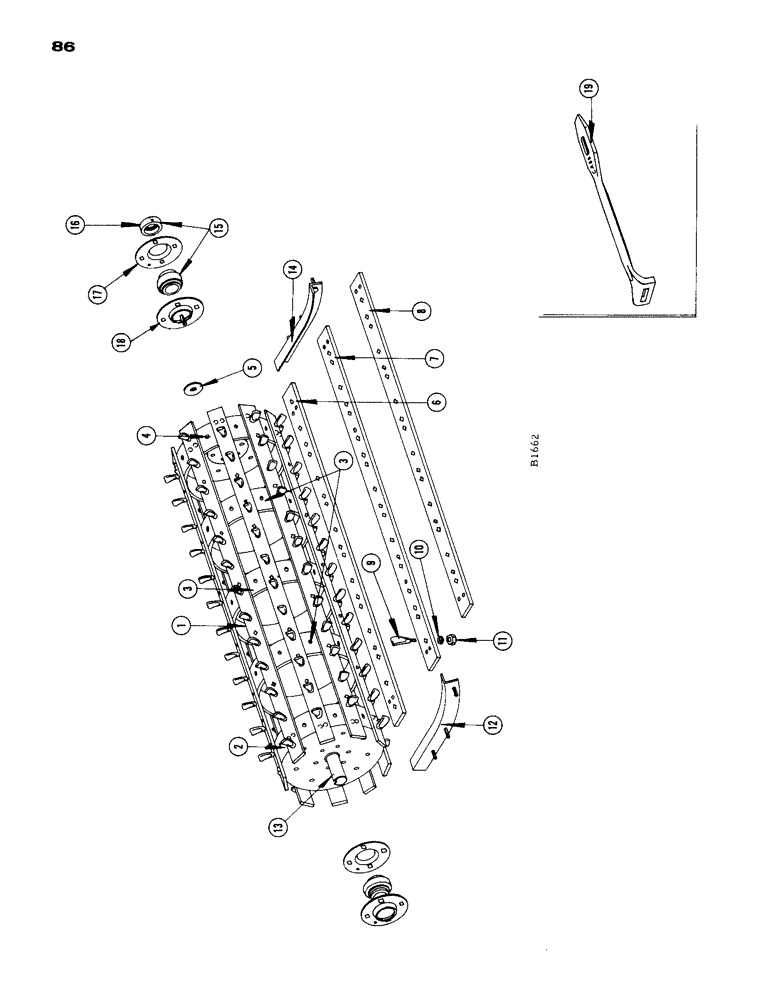

Запчасти Case IH 1660 (086) - SPIKE TOOTH CYLINDER (66) - THRESHING

1

F87643

CYLINDER - spike tooth, less shaft (Before #8359001 Replaced by F88734 when stocks are exhausted)

1шт.

2

F87458

HEAD - cylinder, outside, R.H.

1шт.

3

F13659

HEAD - cylinder, center

3шт.

4

F87459

HEAD - cylinder, outside, L.H.

1шт.

5

O1632TS1

WASHER - balance

1шт.

6

F13660

BAR - cylinder, #1 less teeth (spaces 17T)

3шт.

7

F13661

BAR - cylinder, #2 less teeth (spaces 17T)

3шт.

8

F13662

BAR - cylinder, #3 less teeth (spaces 16T)

3шт.

9

B18066

TOOTH

- cylinder (17-F13660, 17-F13661 and 16-F13662)

150шт.

10

194-8

LOCKWASHER - for B18066

150шт.

11

25-118

NUT,1/2"-20, G5

- for B18066

150шт.

1

F88734

CYLINDER - spike tooth, less shaft (#8359001 and after Replaces F87643)

1шт.

2

F88771

HEAD - cylinder, driver R.H.

1шт.

3

F88773

HEAD - cylinder, intermediate

3шт.

4

F88772

HEAD - cylinder, driver, L.H.

1шт.

5

O1632TS1

WASHER - balance

1шт.

6

F30160

BAR - cylinder, #1 less teeth (spaces 17T)

3шт.

7

F30161

BAR - cylinder, #2 less teeth (spaces 17T)

3шт.

8

F30162

BAR - cylinder, #3 less teeth (spaces 16R)

3шт.

9

B18066

TOOTH

- cylinder

150шт.

10

194-8

LOCKWASHER - for B18066

150шт.

11

25-118

NUT,1/2"-20, G5

- for B18066

150шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff, for Ref. 2 and 4

2шт.

11-744

BOLT - 7/16" x 2-3/4" rhd. sq. nk. (for Ref. 2 and 4)

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

2шт.

92-7

LOCK WASHER,7/16"

2шт.

12

F77258

SHIELD - cylinder, w/studs, R.H.

1шт.

25-104

NUT,1/4"-20, G5

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

13

F13663

BOLT

SHAFT - cylinder, V.S. drive

1шт.

F13664

SHAFT - cylinder, chain drive

1шт.

14

F77257

SHIELD - cylinder, with studs, L.H.

1шт.

25-104

NUT,1/4"-20, G5

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

F87826

COLLAR

BEARING - cylinder shaft

2шт.

16

F13691

COLLAR

1шт.

17

F13645

FLANGE

- bearing, outer

2шт.

14-896

BOLT (MACHINE),Hex, 1/2" - 20 x 6", Gr 5

BOLT - 1/2" x 6" N.F. hex.

2шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex.

8шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

10шт.

18

F13644

FLANGE

- bearing, inner

2шт.

19

B18287

STRAIGHTENER - tooth

1шт.

F87469

STRIPPER - cylinder (see Ref. 5 page 85)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

131-149

LOCK NUT,5/16"-24, GA

NUT - 5/16" N.F. hex. Gripco

4шт.

F87470

SHROUD - stripper (see Ref. 6, page 85)

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

8шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

8шт.
