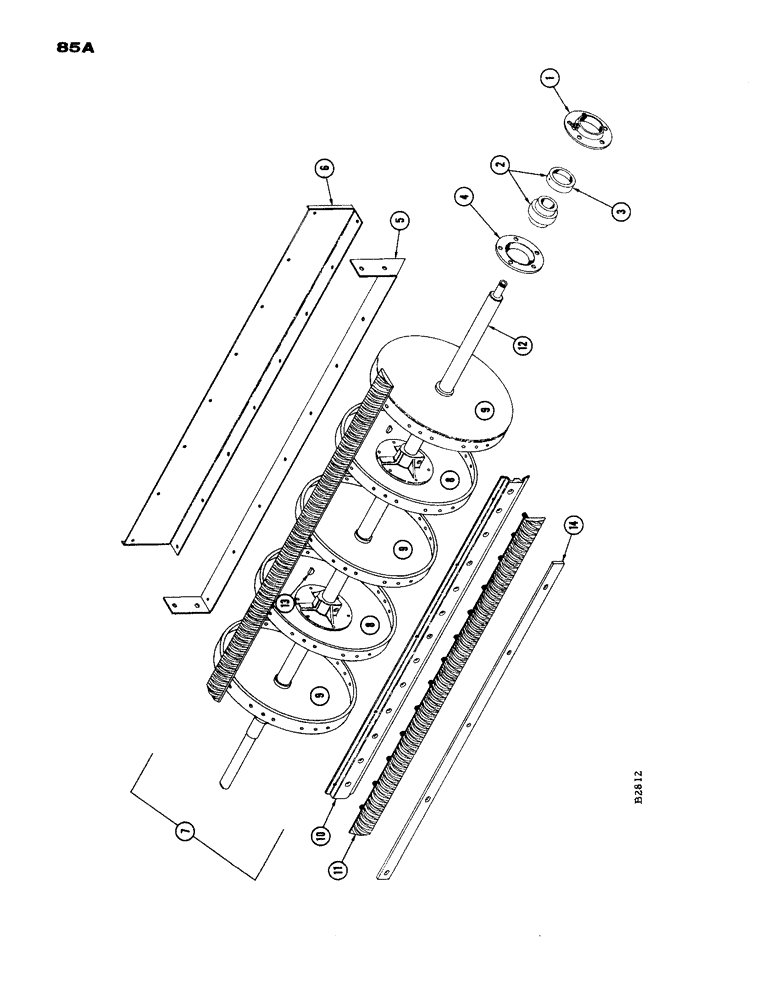

Запчасти Case IH 1660 (085A) - RUB BAR CYLINDER AND FILLER PLATES, S/N 8359001 AND AFTER (66) - THRESHING

1

F13645

FLANGE

- bearing, outer

2шт.

14-896

BOLT (MACHINE),Hex, 1/2" - 20 x 6", Gr 5

BOLT - 1/2" x 6" N.F. hex.

2шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex.

8шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

10шт.

2

F87826

COLLAR

BEARING - w/collar

2шт.

3

F13691

COLLAR

1шт.

4

F13644

FLANGE

- bearing, inner

2шт.

5

F88672

STRIPPER - cylinder

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

4шт.

131-177

LOCK NUT,3/8"-24, GA

NUT - 3/8" N.F. hex. gripco

4шт.

6

F88673

SHROUD

- stripper, lower

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

8шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

8шт.

7

F88767

CYLINDER - rub bar, less shaft

1шт.

8

F88761

HEAD - driving, cylinder

2шт.

9

F88762

HEAD - floating, cylinder

3шт.

10

F30188

SUPPORT - rub bar

8шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

80шт.

92-6

LOCK WASHER,3/8"

80шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

80шт.

O1632TS1

WASHER - balance

1шт.

11

F87665

SET of CYLINDER BARS - (4 R.H. and 4 L.H. with 112 (195-104) std. washers, (192-21) l.w. (129-123) nuts)

1шт.

12

F30189

SHAFT - cylinder, V.S. drive, rub bar

1шт.

F30190

SHAFT - cylinder, chain drive, rub bar

1шт.

14-748

X

BOLT - 7/16" x 3" N.F. hex.

2шт.

92-7

LOCK WASHER,7/16"

2шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

2шт.

13

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff, for F88761

2шт.

14

F30191

PLATE - filler

8шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

40шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

40шт.

195-525

WASHER,3/8", SAE

40шт.
