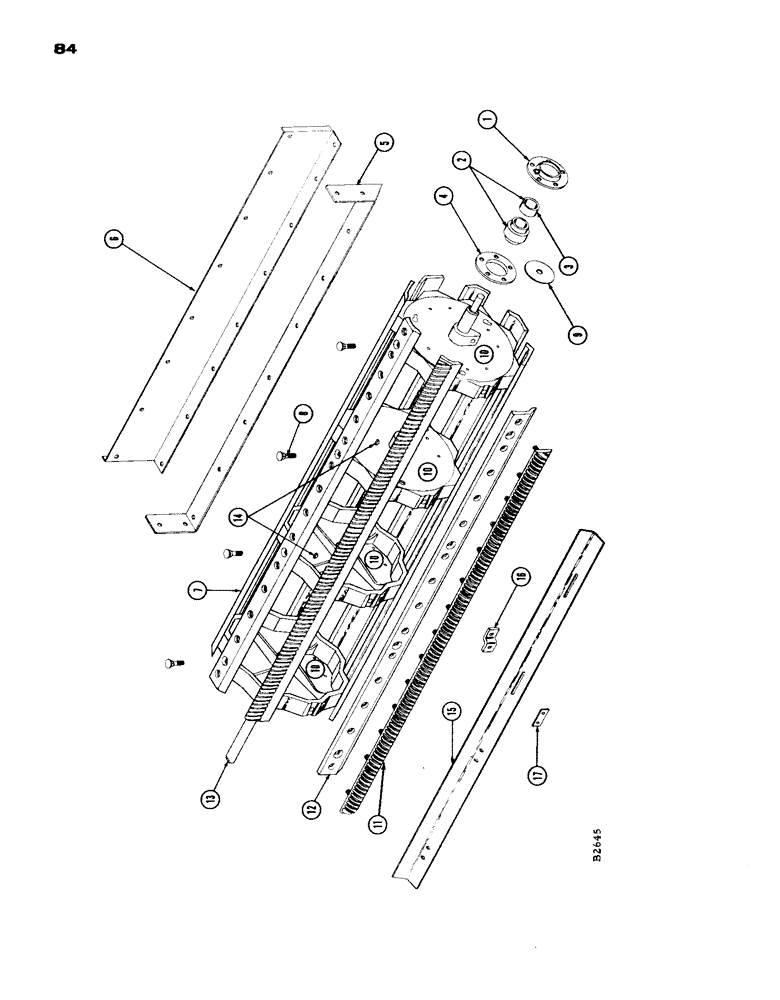

Запчасти Case IH 1660 (084) - RUB BAR CYLINDER AND FILLER PLATES, BEFORE S/N 8359001 (66) - THRESHING

1

F13645

FLANGE

- bearing, outer

2шт.

14-896

BOLT (MACHINE),Hex, 1/2" - 20 x 6", Gr 5

BOLT - 1/2" x 6" N.F. hex.

2шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex.

8шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

10шт.

2

F87826

COLLAR

BEARING - w/collar

2шт.

3

F13691

COLLAR

1шт.

4

F13644

FLANGE

- bearing, inner

2шт.

5

F87469

STRIPPER - cylinder (Replaced by F88672 when stocks are exhausted) See P.85B

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

131-149

LOCK NUT,5/16"-24, GA

NUT - 5/16" N.F. hex. Gripco

4шт.

6

F87470

SHROUD - stripper (Replaced by F88673 when stocks are exhausted) See P. 85B

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

8шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

8шт.

7

F87453

CYLINDER - rub bar, less shaft

1шт.

8

F5340

BOLT - rub bar support

32шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

32шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

32шт.

9

O1632TS1

WASHER - balance

1шт.

75-520

SCREW - 5/16" x 1-1/4" rhd. N.C. mach.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

10

F1976

HEAD - cylinder

4шт.

11

F87665

SET OF CYLINDER RUB BARS- ( 4 R.H. and 4 L.H. with 112 (195-104) std. washers, (192-21) l.w. (129-123 nuts)

1шт.

12

F13653

SUPPORT - rub bar

8шт.

13

F13656

SHAFT - cylinder V.S. drive, rub bar

1шт.

F13657

SHAFT - cylinder chain drive, rub bar

1шт.

14

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff, for F1976

4шт.

14-749

BOLT - 7/16" x 3" N.F. hex.

4шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

92-7

LOCK WASHER,7/16"

4шт.

15

F14064

PLATE - filler (for use with cornhead)

8шт.

16

F14065

CLAMP - filler plate

32шт.

111-330

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G2

BOLT - 3/8" x 1-3/4" rhd. sq. nk.

32шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

32шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

64шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

64шт.

17

F10678

WASHER - strap

16шт.
