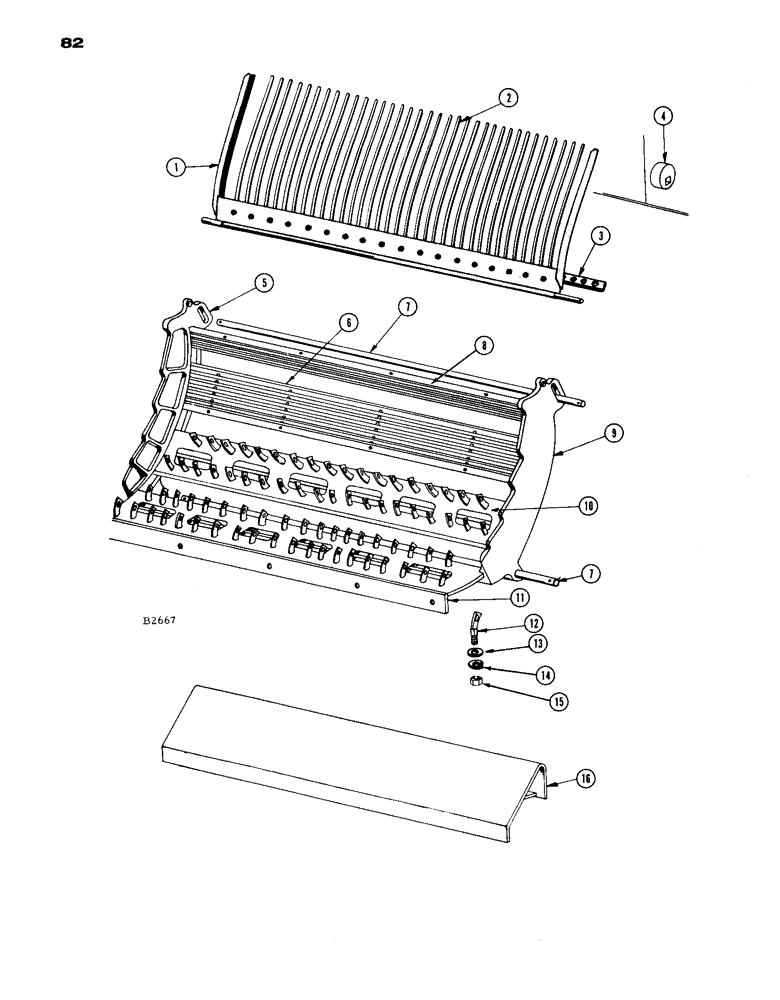

Запчасти Case IH 1660 (082) - SPIKE TOOTH CYLINDER, CONCAVES, TINES, AND REMOVABLE FEED (66) - THRESHING

1

F87504

GRATE TINE ASSEMBLY

1шт.

2

F13740

TINE

- grate

33шт.

3

F13741

STRIP - bolting, grate tine

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

5шт.

25-104

NUT,1/4"-20, G5

5шт.

4

F1327

ECCENTRIC - grate tine

2шт.

11-628

BOLT,Short NK, 3/8"-16 x 1 3/4", G2

- 3/8" x 1-3/4" rhd. sq. nk.

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

5

F1394

CIRCLE - concave, R.H.

1шт.

6

F87508

CONCAVE - open grate

1шт.

7

F13757

SHAFT - concave support

2шт.

8

F87507

CONCAVE - open grate, rear

1шт.

9

F1395

CIRCLE - concave, L.H.

1шт.

10

F87509

CONCAVE - spike tooth, rear

1шт.

B18066

TOOTH

- concave (see Ref. 12)

49шт.

195-33

WASHER,1/2"

- SAE std. flat (see Ref. 13) 1/2"

49шт.

194-8

LOCKWASHER - 1/2" x 11/64" x 1/8" dbl. ribbed (Ref. 14)

49шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex. (see ref. 15)

49шт.

11

F87512

CONCAVE - spike tooth, front

1шт.

12

B18066

TOOTH

- concave

49шт.

13

195-33

WASHER,1/2"

- SAE std. flat 1/2"

49шт.

14

194-8

LOCKWASHER - 1/2" x 11/64" x 1/8" dbl. ribbed

49шт.

15

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

49шт.

F87882

FEED PLATE - cylinder (Stone Trap)

1шт.

16

F87513

FEED PLATE - cylinder (Regular)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

7шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

7шт.
