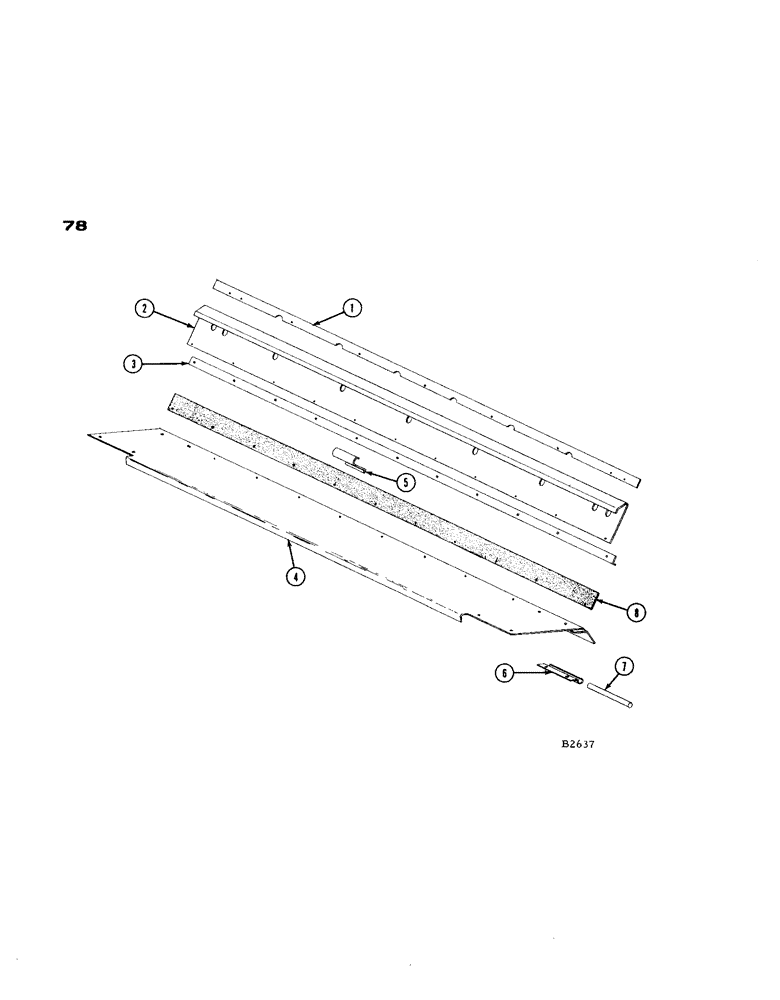

Запчасти Case IH 1660 (078) - STONE TRAP (60) - PRODUCT FEEDING

1

F87884

STRIP - bolting

1шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N.F. hex.

7шт.

195-525

WASHER,3/8", SAE

7шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

2

F87882

PLATE - feed

1шт.

3

F14217

STRIP - bolting, seal

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

11шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

11шт.

4

F87883

DOOR - inspection, includes seal and reinforcement

1шт.

5

F12569

CLAMP - door

2шт.

6

F11890

CLAMP - pivot pin

2шт.

7

F11889

SHAFT - pivot

2шт.

8

F14216

SEAL

1шт.
