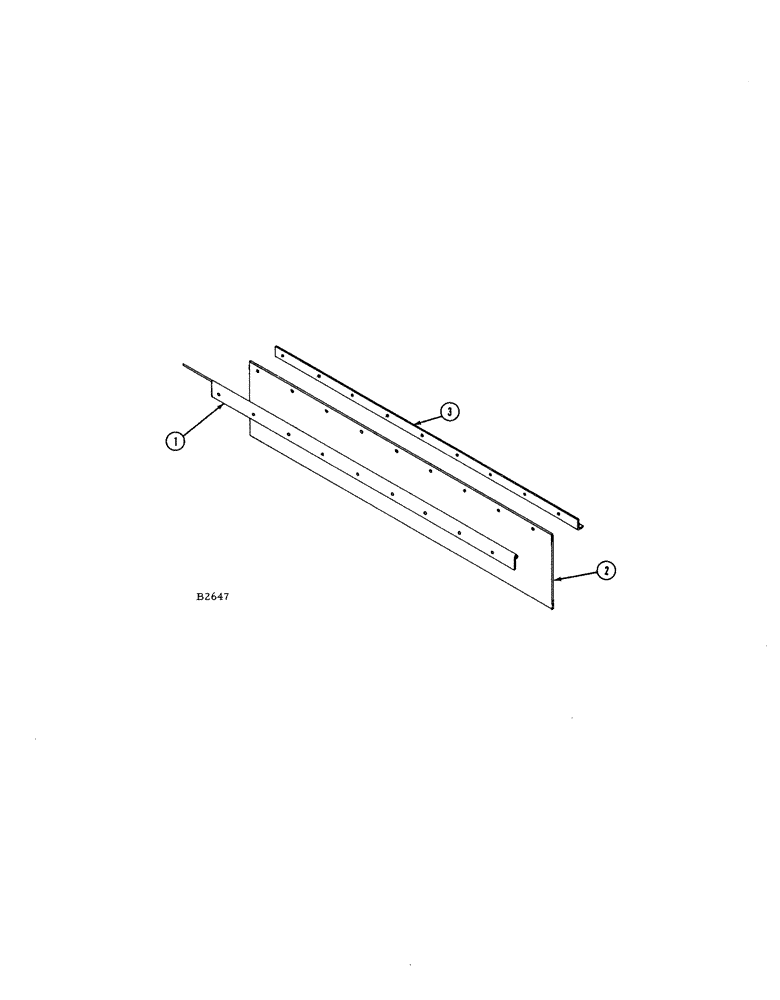

Запчасти Case IH 1660 (078[A]) - FLEXIBLE CHECK FLAP (60) - PRODUCT FEEDING

1

F14524

HINGE - check flap

1шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" rhd. N.C. mach.

9шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

9шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

9шт.

2

F14523

CHECK FLAP - flexible

1шт.

3

F14522

ANGLE - rear, check flap

1шт.
