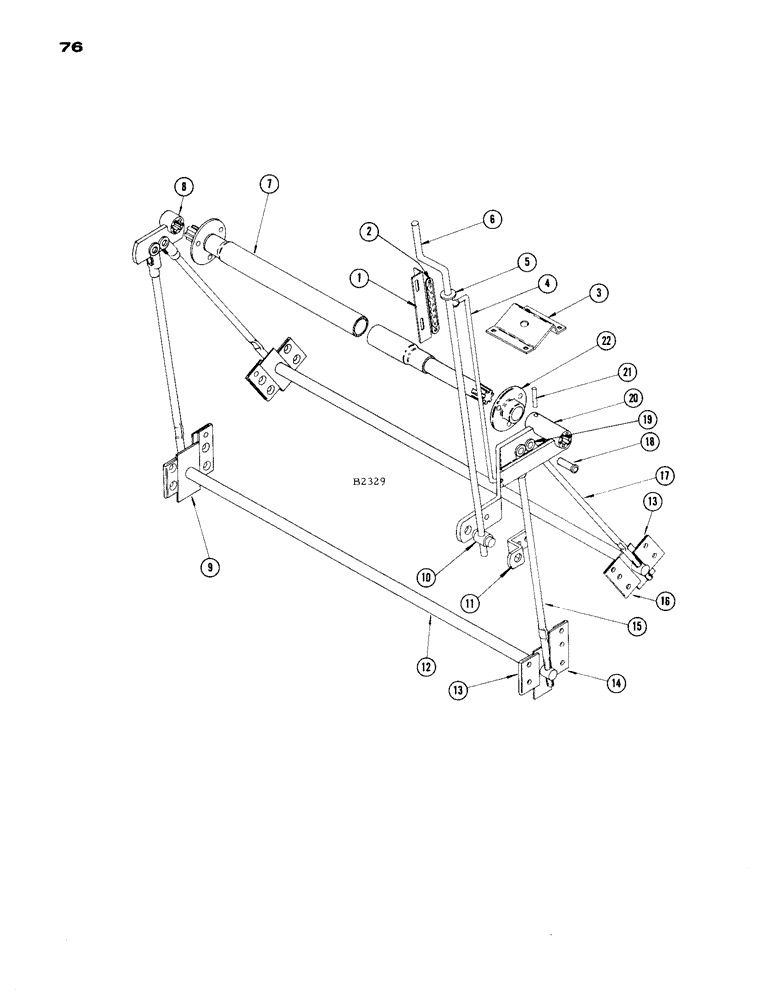

Запчасти Case IH 1660 (076) - CONCAVE ADJUSTING LEVER AND LINKAGE (60) - PRODUCT FEEDING

1

F13038

BRACKET - concave gauge plate

1шт.

2

F12119

GAUGE - concave clearance

1шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" rhd. N.C. mach.

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

195-518

WASHER,1/4", SAE

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

3

F13032

BEARING - concave crank

1шт.

12-410

BOLT - 1/4" x 5/8" rhd. sh. sq. nk.

4шт.

25-104

NUT,1/4"-20, G5

4шт.

4

F13034

INDICATOR - concave adjustment

1шт.

132-44

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

2шт.

132-46

COTTER PIN,1/8" x 3/4"

PIN - cotter, 3/16" x 3/4"

1шт.

5

B18080

WASHER

- for F13062 crank

1шт.

6

F13062

SCREW

CRANK - concave adjusting

1шт.

136-160

COTTER PIN,Int, 13/64" x .156"

COTTER - hairpin, 1/4" x 1"

1шт.

7

F87520

TUBE - concave adjusting

1шт.

8

F87813

ARM - concave adjusting, R.H.

1шт.

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

9

O3780CS

SHIELD - concave slot

4шт.

10

F6428

BLOCK - pivot, lower

1шт.

132-146

PIN - cotter, 1/4" x 1"

1шт.

11

F6429

BRACKET - support, concave adjusting

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

12

F13757

SHAFT - concave support, front and rear

2шт.

13

O3772CS

GUIDE - shield, concave shaft

4шт.

18-616

BOLT

- 3/8" x 1" #3 hd. N. C. plow

8шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

14

F8218

GUIDE - shield, front concave shaft (rub bar cylinder)

2шт.

18-616

BOLT

- 3/8" x 1" #3 hd. N.C. plow, and nut (25-106)

4шт.

92-6

LOCK WASHER,3/8"

4шт.

O3770CS

GUIDE - shield, front concave shaft (spike tooth cylinder)

2шт.

181-461

SCREW - 7/16" x 1-1/2" N.C. sq. hd. set

2шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

- 7/16" N. C. hex. jam

2шт.

18-616

BOLT

- 3/8" x 1" #3 hd. N. C. plow, and nut (25-106)

4шт.

15

F14502

ROD - adj. front (Replaced by F11032 when stock is exhausted)

2шт.

F11032

ROD - concave adjusting, front (Replaces F14502)

2шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex. jam

6шт.

16

F8217

GUIDE - shield, rear concave shaft (rub bar cylinder)

2шт.

18-616

BOLT

- 3/8" x 1" #3 hd. N.C. plow

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

O3771CS

GUIDE - shield, rear concave shaft (spike tooth cylinder)

2шт.

181-461

SCREW - 7/16" x 1-1/2" N.C. sq. hd. set

2шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

- 7/16" N.C. hex. jam

2шт.

18-616

BOLT

- 3/8" x 1" #3 hd. N. C. plow

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

17

F14503

ROD - adj. rear (Replaced by F11033 when stock is exh.)

2шт.

F11033

ROD - concave adjusting, rear (Replaces F14503)

2шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex. jam

6шт.

18

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis (for 213-6 clevis)

4шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

19

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - concave adjusting rods

4шт.

20

F87003

ARM - concave adjusting, L.H.

1шт.

21

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

22

245CS

BEARING - pivot shaft, concave adjusting

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

6шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

6шт.
