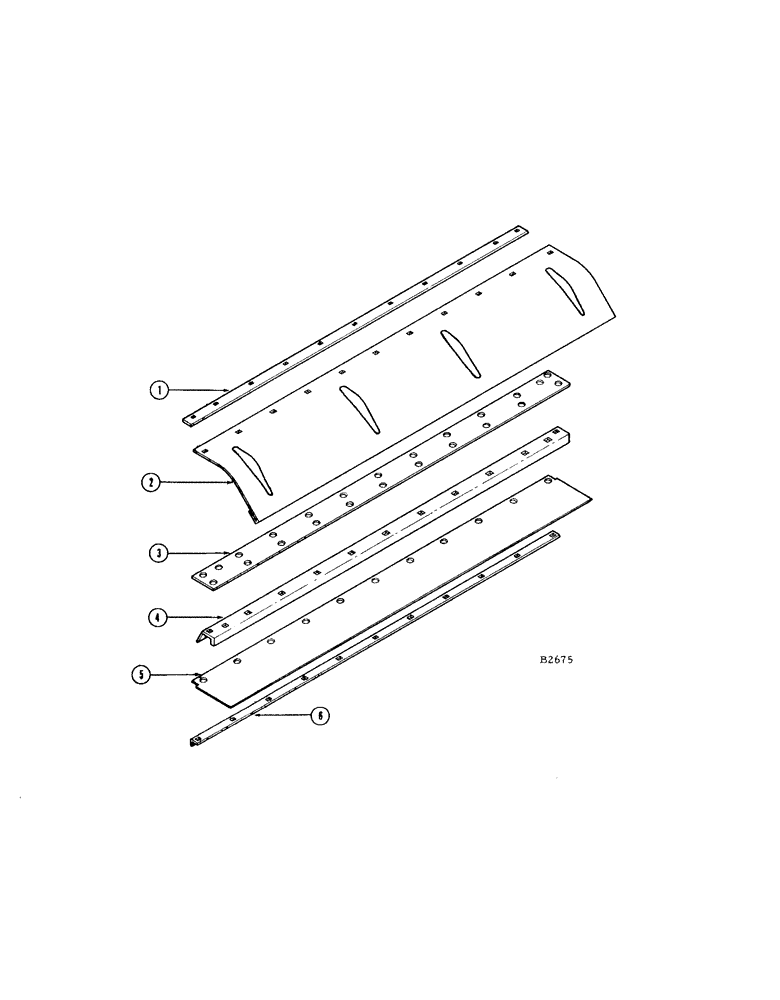

Запчасти Case IH 1660 (072[A]) - HINGED FEED PLATE FOR FEED SPOUT (60) - PRODUCT FEEDING

1

F13410

STRIP - spacer, feeder spout upper floor

1шт.

2

F13414

SCREW

FEED PLATE

1шт.

3

F13413

SCREW

HINGE - rubber

1шт.

4

F13411

SCREW

REINFORCEMENT - feed plate hinge

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" N.C. rhd. sq. nk.

11шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

25-104

NUT,1/4"-20, G5

11шт.

5

F13412

SCREW

SEAL

1шт.

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- 3/16" x 3/8" truss hd.

11шт.

6

F13415

SCREW

ANGLE - reinforcement for feed plate

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" N.C. rhd. sq. nk.

11шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

25-104

NUT,1/4"-20, G5

11шт.
