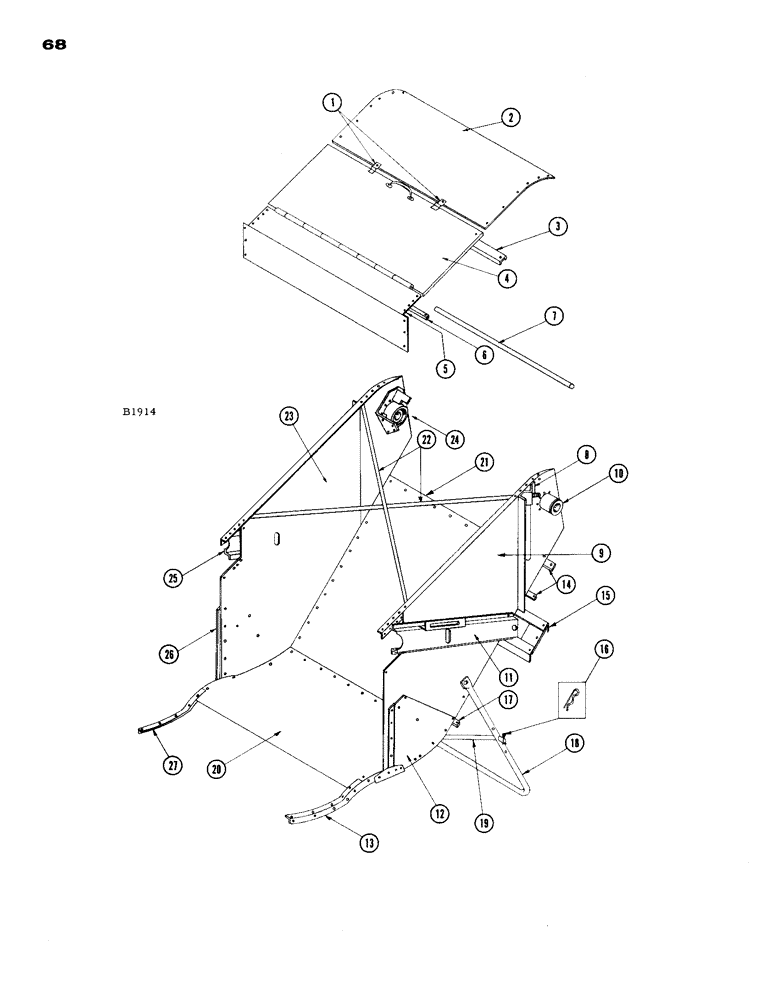

Запчасти Case IH 1660 (068) - FEEDER SPOUT (60) - PRODUCT FEEDING

1

F86525

CLIP

- door

2шт.

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" rhd. N.C. mach.

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

129-7

NUT,Hex, #10 - 24

- #10 - 24 N.C. hex.

2шт.

2

F13430

TOP - upper feeder spout

1шт.

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

SCREW - 1/4" x 3/4" flat hd. soc cap

6шт.

95-4

WASHER,1/4"

- flat 1/4"

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

25-104

NUT,1/4"-20, G5

6шт.

3

F13431

SCREW

CHANNEL - top, upper feeder spout

1шт.

4

F87339

DOOR - feeder spout

1шт.

228-3

HANDLE

1шт.

49-35

RIVET - 3/16" x 5/16" W.B.

2шт.

5

F13493

TOP SHEET - feeder spout

1шт.

6

F13494

CHANNEL

1шт.

7

F13497

ROD - hinge, feeder spout door

1шт.

8

F10161

BRACKET

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

9

F87298

SIDE SHEET - L.H. feeder spout (14' - 16' - 19')

1шт.

F88582

SIDE SHEET - L.H. feeder spout (20 ft.)

1шт.

10

F87302

PLATE and HUB - L.H. pivot

1шт.

45-513

RIVET - 5/16" x 13/16" rhd.

7шт.

45-514

RIVET - 5/16" x 7/8" rhd. But Hd, 5/16" x 7/8"

1шт.

11

F77057

SCREW

SIDE RAIL - L.H. (14 ft. - 16 ft. - 19 ft.)

1шт.

F88586

SIDE RAIL - L.H. (20 ft. hdr.)

1шт.

12

F8317

GUSSET - lower side sheet, L.H.

1шт.

45-58

RIVET - 5/16" x 1/2" rhd.

1шт.

45-510

RIVET - 5/16" x 5/8" rhd. But Hd, 5/16" x 5/8"

2шт.

13

F79100

ANGLE - L.H. lower

1шт.

45-512

RIVET,But Hd, 5/16" x 3/4"

- 5/16" x 3/4" rhd.

4шт.

14

F13407

CHANNEL - upper, feeder spout floor

2шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" N.C. rhd. sq. nk.

8шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

25-104

NUT,1/4"-20, G5

8шт.

15

F87305

SUPPORT - hdr. lift (Replaced by F88588 when stock is exh.)

1шт.

F88588

SUPPORT - hdr. lift (Replaces F87305 & F88305)

1шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" N.C. rhd. sq. nk.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

16

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

COTTER - hairpin, 3/8"

4шт.

17

F13409

SCREW

CHANNEL - lower, feeder spout floor

1шт.

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4" x 1/2" N.C. rhd. sq. nk.

9шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

25-104

NUT,1/4"-20, G5

9шт.

18

F87385

STAND - header support

1шт.

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

19

F8397

TIE ROD - header support stand

2шт.

20

F13408

FLOOR - lower, feeder spout

1шт.

21

F13406

FLOOR - upper, feeder spout

1шт.

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4" x 1/2" rhd. sq. nk.

12шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

25-104

NUT,1/4"-20, G5

12шт.

22

F13503

BRACE - cross, feeder spout

2шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

23

F87303

SIDE SHEET - R.H. feeder spout (14 ft. - 16 ft. - 19 ft.)

1шт.

F88583

SIDE SHEET - R.H. feeder spout (20 ft.)

1шт.

24

F87304

PLATE and HUB-R, H. pivot

1шт.

45-513

RIVET - 5/16" x 13/16" rhd.

7шт.

45-514

RIVET - 5/16" x 7/8" rhd. But Hd, 5/16" x 7/8"

1шт.

25

F77054

SIDE RAIL - R.H. (14 ft. - 16 ft. - 19 ft.)

1шт.

F88587

SIDE RAIL - R.H. (20 ft.)

1шт.

26

F8318

GUSSET - lower side sheet, R.H.

1шт.

45-58

RIVET - 5/16" x 1/2" rhd.

1шт.

45-510

RIVET - 5/16" x 5/8" rhd. But Hd, 5/16" x 5/8"

2шт.

27

F79102

ANGLE - R.H. lower

1шт.

45-512

RIVET,But Hd, 5/16" x 3/4"

- 5/16" x 3/4" rhd.

4шт.
