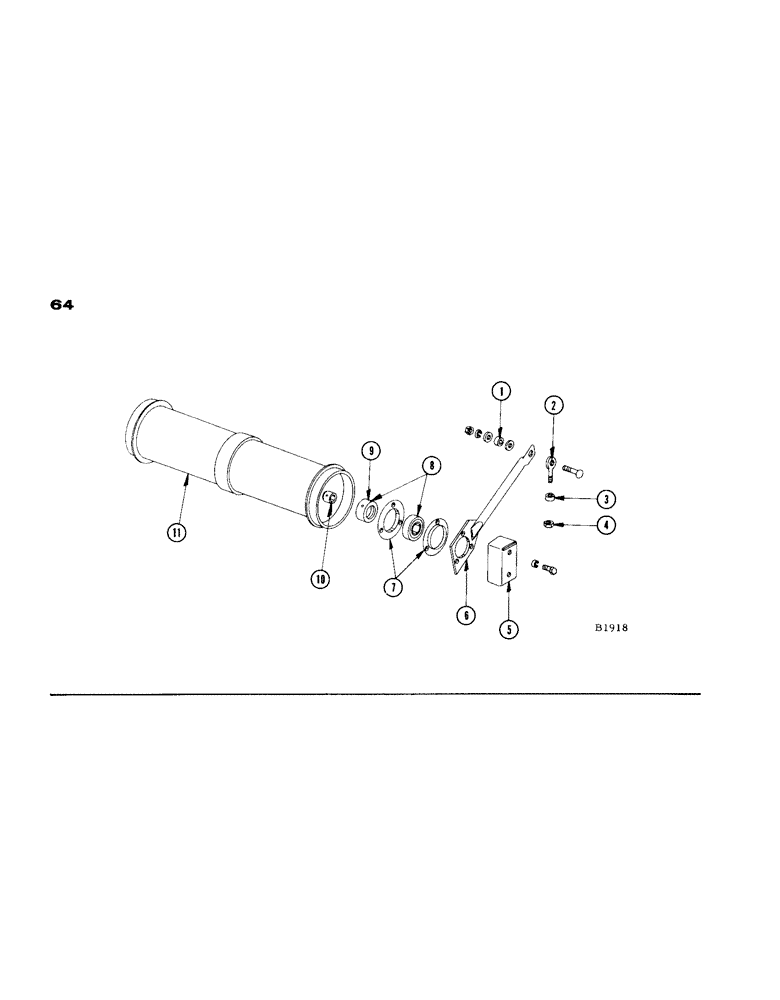

Запчасти Case IH 1660 (064) - FEED RAKE LOWER SHAFT AND DRUM (60) - PRODUCT FEEDING

1

T31088

SPACER,3/8" Pipe x 1/2"

Eyebolt 3/8" Pipe x 1/2"

2шт.

2

F8326

EYEBOLT - feed rake chain tightener

2шт.

11-732

BOLT

- 7/16" x 2" N.D. rhd. sq. nk.

2шт.

95-7

WASHER,7/16"

- flat 7/16"

4шт.

92-7

LOCK WASHER,7/16"

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

2шт.

3

O4673TF

WASHER - 7/16"

2шт.

4

131-7

LOCK NUT,7/16"-20

NUT - 7/16" elastic stop

2шт.

5

F79152

SHIELD and STOP - L.H.

1шт.

F79151

SHIELD and STOP - R.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

6

F78636

ARM - support

2шт.

7

F62225

FLANGE

4шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N.F. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

8

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - lower feed rake shaft

2шт.

9

F62226

COLLAR

1шт.

10

F13433

SCREW

SHAFT - lower feed rake

1шт.

11

F88168

DRUM - lower feed rake

1шт.

132-184

PIN

- cotter, 5/16" x 2-1/4"

1шт.
