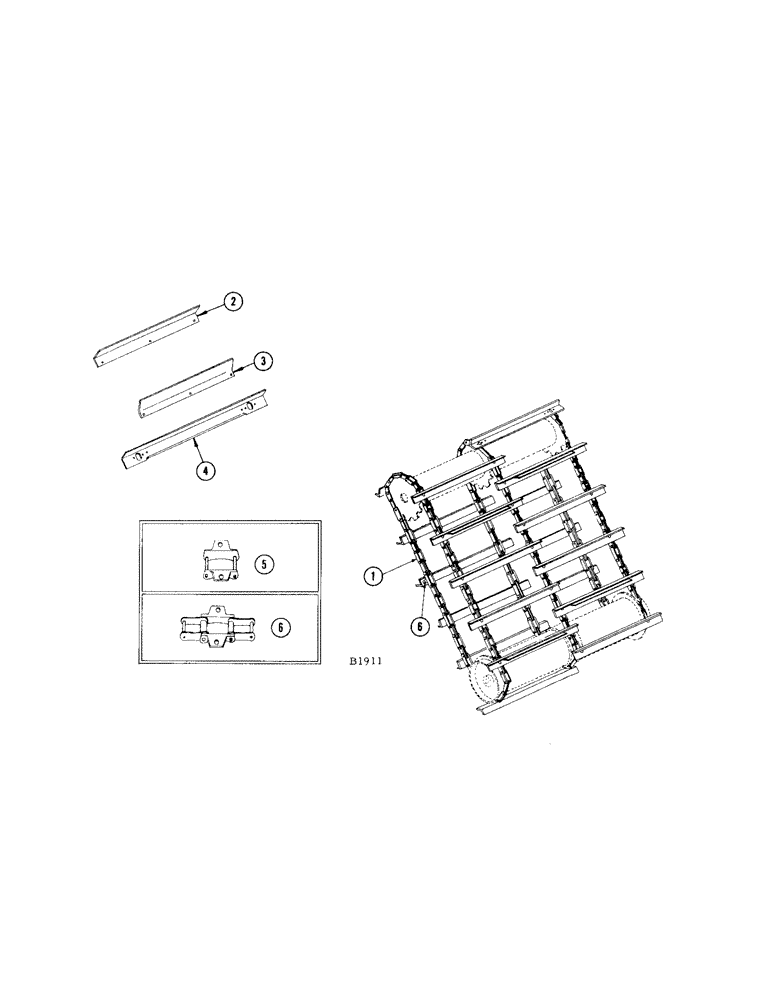

Запчасти Case IH 1660 (062[A]) - FEED RAKE (60) - PRODUCT FEEDING

1

F87310

FEED RAKE - (Consists of 26-F13438 slats, 8-F13439 wipers, 8-F13440 reinfs., 52 attach. links and A550 chain links)

1шт.

2

F13440

REINFORCEMENT - wiper strip

8шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

24шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

24шт.

3

F13439

WIPER

8шт.

4

F13438

SLAT

8шт.

45-410

RIVET,But Hd, 1/4" x 5/8"

- 1/4" x 5/8" rhd.

104шт.

F79124

COTTERS - hardened, package of 25 for A550 chain

1шт.

5

F11698

LINK ASSY.

LINK - connecting attaching (outside)

1шт.

6

F79916

LINK - attaching, w/2 connecting links

1шт.

K3913

LINK

- connecting, A550 roller chain

1шт.

K3914

LINK

- roller, A550 roller chain

1шт.

K3915

LINK

- offset, A550 roller chain

1шт.
