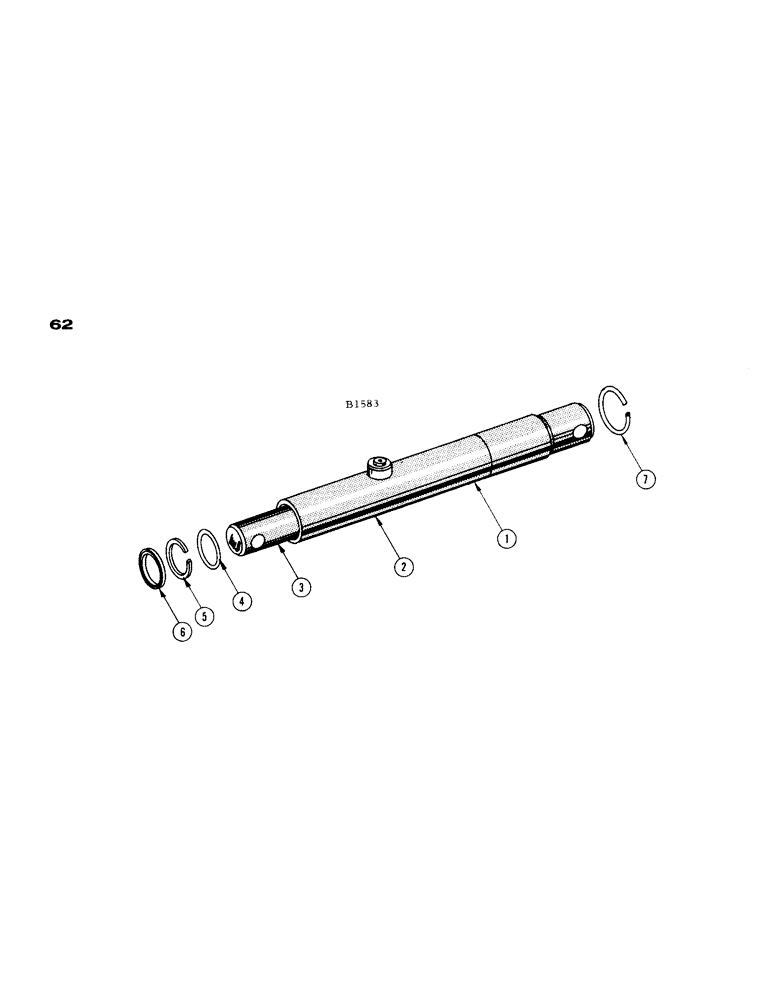

Запчасти Case IH 1660 (062) - HEADER LIFT CYLINDER (58) - ATTACHMENTS/HEADERS

1

F87869

CYLINDER - header lift (complete) Before #8333601

2шт.

F88359

CYLINDER - header lift (complete) #8334601 and after

2шт.

2

NSS

NOT SOLD SEPARAT

BARREL

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

F86294

CYLINDER

REPAIR KIT

1шт.

4

F8083

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

"O"RING - (3/16" x 1-7/8" I.D.)

1шт.

5

F8084

WASHER

- (3/16" x 2-3/8" O.D.) back up

1шт.

6

F10649

OIL SEAL

OIL SEAL

1шт.

7

F10650

RING, SNAP

SNAP RING - (1-7/8" rd. open) piston rod

1шт.
