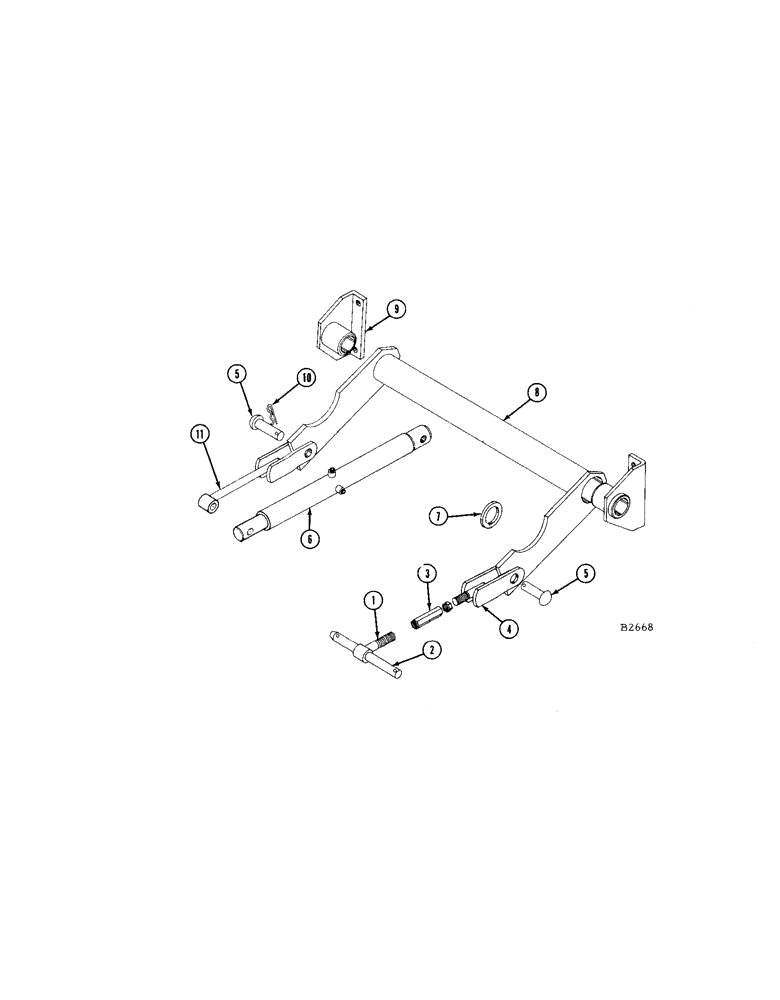

Запчасти Case IH 1660 (060[A]) - HEADER LIFT (58) - ATTACHMENTS/HEADERS

1

F86020

LINK - front, L.H. (L.H. thread)

1шт.

2

F14909

PIN - header (Replaces F13780)

2шт.

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER - hairpin 2-27/32" x 7/8"

2шт.

3

F17790

TURNBUCKLE

1шт.

4

F81990

LINK - rear, L.H. (R. H. thread)

1шт.

129-169

JAM NUT,Jam, 7/8"-14, G5

1шт.

5

F60945

PIN

2шт.

6

F87869

CYLINDER - header lift (see page 63) Before #8334601

2шт.

F88359

CYLINDER - hdr. lift (see p. 63) #8334601 and after

2шт.

7

B18004

WASHER

- for cylinder pin welded to main frame

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

8

F87503

TORQUE TUBE - header lift

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" x 67-1/2deg. grease

2шт.

9

F87894

SUPPORT - torque tube

2шт.

10

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , For ref. 5 1/4" x 1 1/2"

2шт.

11

F86018

LINK ASSEMBLY - R.H.

1шт.
