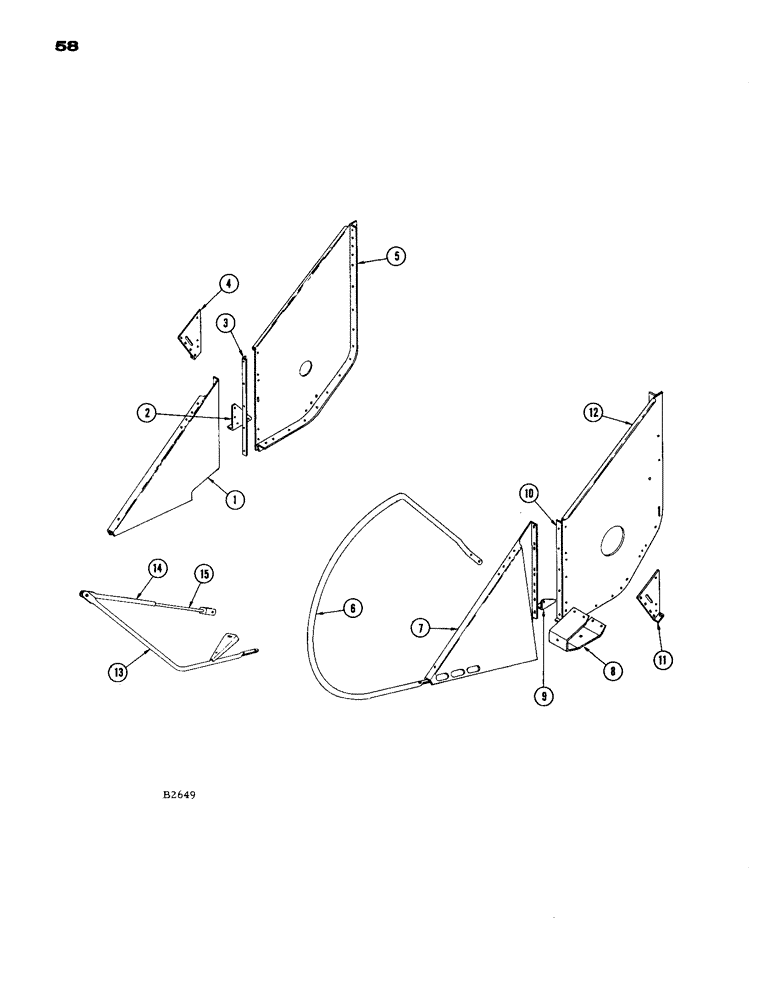

Запчасти Case IH 1660 (058) - AUGER TROUGH HEADS (58) - ATTACHMENTS/HEADERS

1

F87401

DIVIDER

POINT - R.H. (Replaced by F88215 when stocks are exhausted)

1шт.

F88215

X

DIVIDER POINT - R.H. (Replaces F87401) Replaced by F88613 when stocks are exhausted)

1шт.

F88613

POINT

DIVIDER POINT - R.H. (Replaces F87401 and F88215)

1шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- 5/16" x 5/8" rhd. sq. nk.

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

2

F13486

SCREW

GUSSET - R.H., end sheet (Replaced by F8282 when stocks are exhausted)

1шт.

F8282

GUSSET - R.H., end sheet (Replaces F13486)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

3

F13482

POST - divider, R.H.

1шт.

4

F8301

GUSSET - reel support, R. H. (Replaces F13483)

1шт.

5

F87330

END SHEET - auger trough R.H. (14 ft. - 16 ft - 19 ft.) Before #8366851

1шт.

F88591

END SHEET - auger trough R.H. (14 ft. - 16 ft. - 19 ft. - 20 ft.) (#8366851 and after)

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

3шт.

92-5

LOCK WASHER,5/16"

3шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

3шт.

6

F87388

LOOP - divider, L.H. (Before #8359001)

1шт.

F87387

LOOP - divider, R.H. (Before #8359001)

1шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

231-1445

NUT,5/16"-18, GB

NUT - 5/16" - 18 N.C. Esna #21-NE-058

2шт.

111-204

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/4", G2

BOLT - 5/16" x 1-1/4" rhd. sq. nk.

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

F87402

DIVIDER POINT - L.H. (Replaced by F88614 when exh.)

1шт.

F88614

POINT

DIVIDER POINT - L.H. (Replaces F87402)

1шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- 5/16" x 5/8" rhd. sq. nk.

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

8

F8305

BRACE - divider shoe

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

9

F9390

GUSSET - end sheet, L.H.

1шт.

10

F13485

SCREW

POST - divider, L.H.

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

1шт.

92-5

LOCK WASHER,5/16"

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

11

F8302

GUSSET - reel support, L.H. (Replaces F13484)

1шт.

12

F87331

END SHEET - auger trough L.H. (14 ft. - 16 ft. - 19 ft. - 20 ft.) (#8366851 and after )

1шт.

F88592

END SHEET - auger trough, L.H. (20 ft.) Before #8366851

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

13

F88603

LOOM

LOOP - divider (#8359001 and after)

2шт.

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" rhd. sq. nk.; LW (192-20) NUT (129-102)

4шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

LW (192-19) Nut (129-101) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

14

F21001

PIPE

LINK - (#8359001 and after)

2шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

231-1445

NUT,5/16"-18, GB

NUT - 5/16" - 18" N.C. ESNA #21 NE-058

2шт.

15

F83942

YOKE and ROD - (#8359001 and after)

2шт.

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

231-1445

NUT,5/16"-18, GB

NUT - 5/16" - 18" N.C. ESNA #21 NE-058

2шт.
