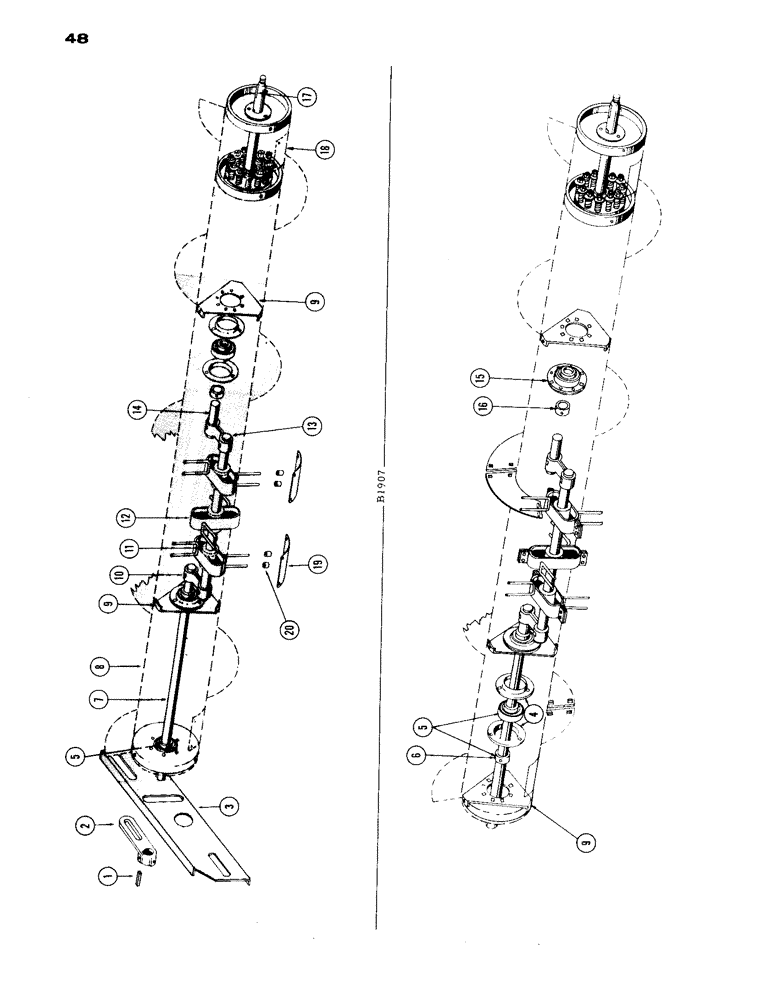

Запчасти Case IH 1660 (048) - RETRACTABLE FINGER TYPE HEADER AUGER (58) - ATTACHMENTS/HEADERS

1

F62223

KEY

- 3/16" sq. x 1" - for Ref. 2

1шт.

2

F1232

FITTING

ARM - finger control

1шт.

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - 5/16" x 1/2" N.C. socket hd. cup pt. set

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

1шт.

95-8

WASHER,1/2"

U.S. std. 1/2"

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

3

F77080

SUPPORT - R.H., auger bearing (14' - 16' - 19' hdr.)

1шт.

F88597

SUPPORT , L.H., auger bearing (20 ft. hdr.)

1шт.

B18239

SPACER,3/4" Pipe x 3/4"

BUSHING

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

95-6

WASHER,3/8"

- U.S. std. 3/8"

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

4

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

92-5

LOCK WASHER,5/16"

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

3шт.

5

2950CSA

HOUSING ASSY.

BEARING - R. H. mounting plate

1шт.

6

O4233CS

COLLAR

1шт.

7

F11534

SHAFT - control, 14 ft. header

1шт.

F11533

SHAFT - control, 16 ft. header

1шт.

F14080

SHAFT - control, 19 ft. header

1шт.

F30043

SHAFT - control, 20 ft. header

1шт.

8

F87737

AUGER - header, 14 ft. (tube and flighting)

1шт.

F87738

AUGER - header, 16 ft. (tube and flighting)

1шт.

F87739

AUGER - header, 19 ft. (tube and flighting)

1шт.

F88630

AUGER - header, 20 ft. (tube and flighting)

1шт.

9

O5114CS

PLATE - inner, auger tube support

3шт.

76-612

SCREW - 3/8" x 3/4" rhd. N.F. mach.

9шт.

92-6

LOCK WASHER,3/8"

9шт.

25-116

NUT,Hex, 3/8"-24, G5

JAM NUT - 3/8" N.F. hex.

9шт.

10

F7473

ARM

- crank, finger pivot

4шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex.

4шт.

92-5

LOCK WASHER,5/16"

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

11

F11606

BUSHING

- rolle

5шт.

12

F86287

FINGER

ASSEMBLY

10шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

20шт.

92-5

LOCK WASHER,5/16"

20шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

20шт.

13

F10956

SHAFT - roller

1шт.

14

O4241CS

SHAFT - stub

1шт.

15

N5077

FLANGED BEARING

BEARING - flange type, center mounting plate

2шт.

16

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

92-5

LOCK WASHER,5/16"

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C, hex.

6шт.

17

F10375

SHAFT - auger drive

1шт.

95-12

WASHER,3/4"

- U.S. std. 3/4"

1шт.

131-152

HARDWARE

JAM NUT - 3/4" 16 gripco hex.

1шт.

18

F9225

DOOR - inspection

2шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. tapping

8шт.

445406

SPRING NUT,Tinn, 1/4"-14

- Tinnerman speed

8шт.

19

F76158

LARGE PLATE

COVER - finger guide

10шт.

20

F6658

BUSHING

- (7/8" O.D. x 1/2" I.D.) finger

2шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. tapping

40шт.

445406

SPRING NUT,Tinn, 1/4"-14

- Tinnerman speed

40шт.
